HSGQ Products
Experience the quality and innovation of HSGQ networking solutions, designed to deliver stable connectivity, high-performance operation, and long-term reliability for FTTH, ISP, and telecom network environments.

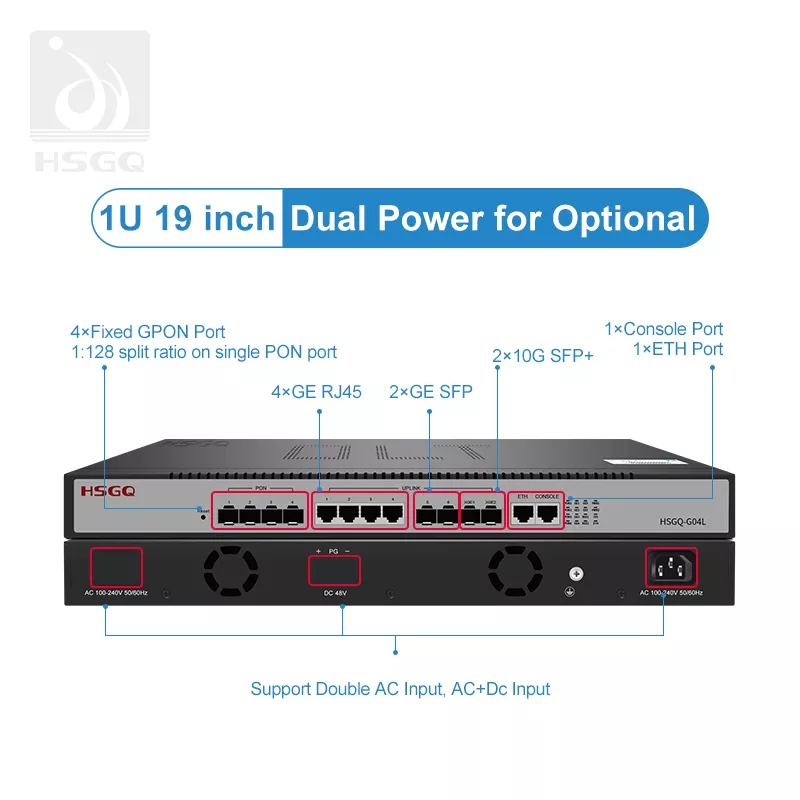

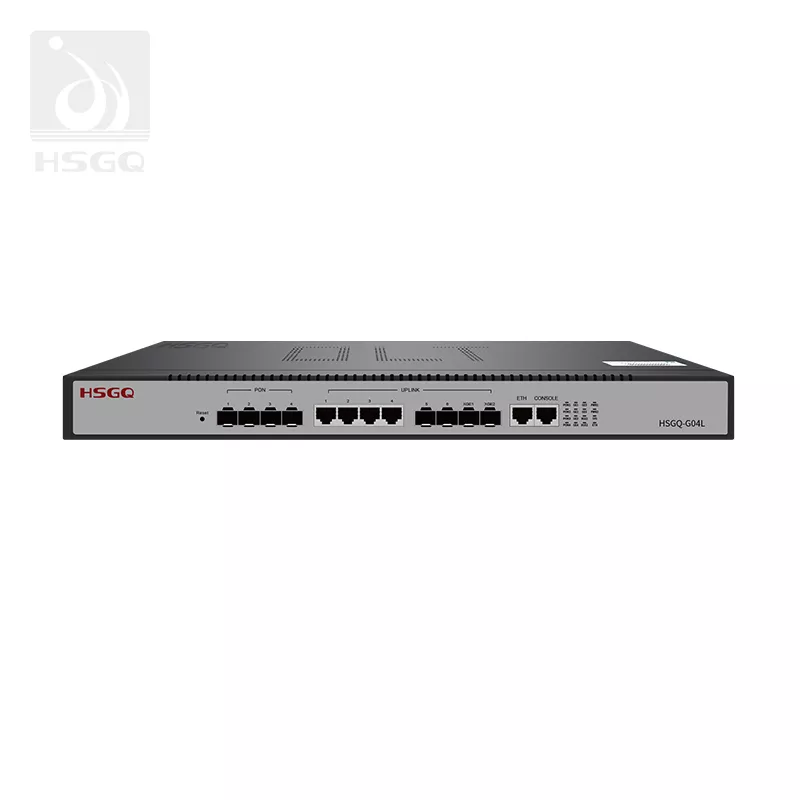

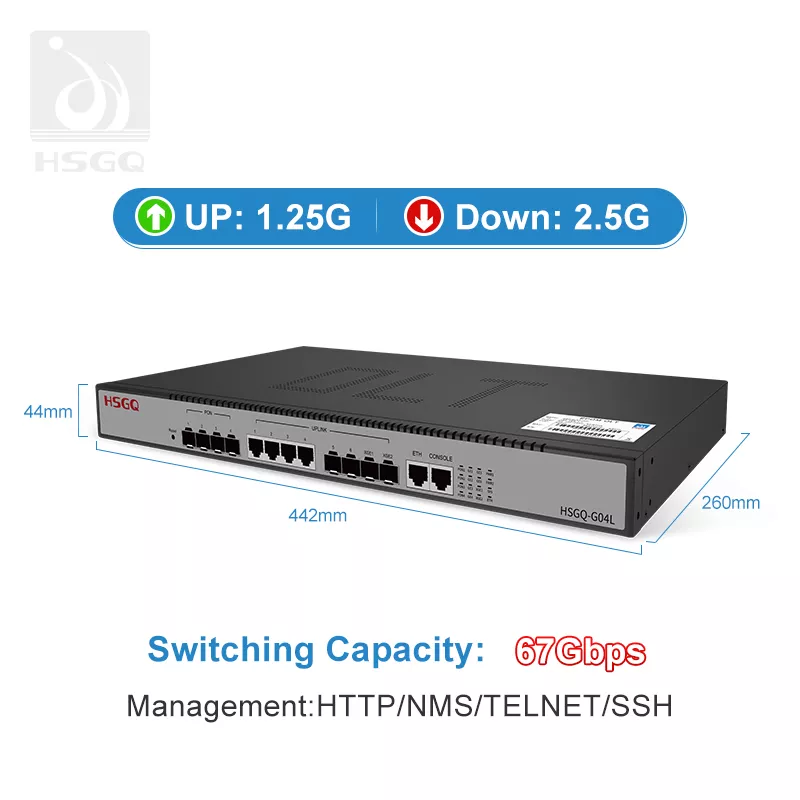

4 Port GPON OLT

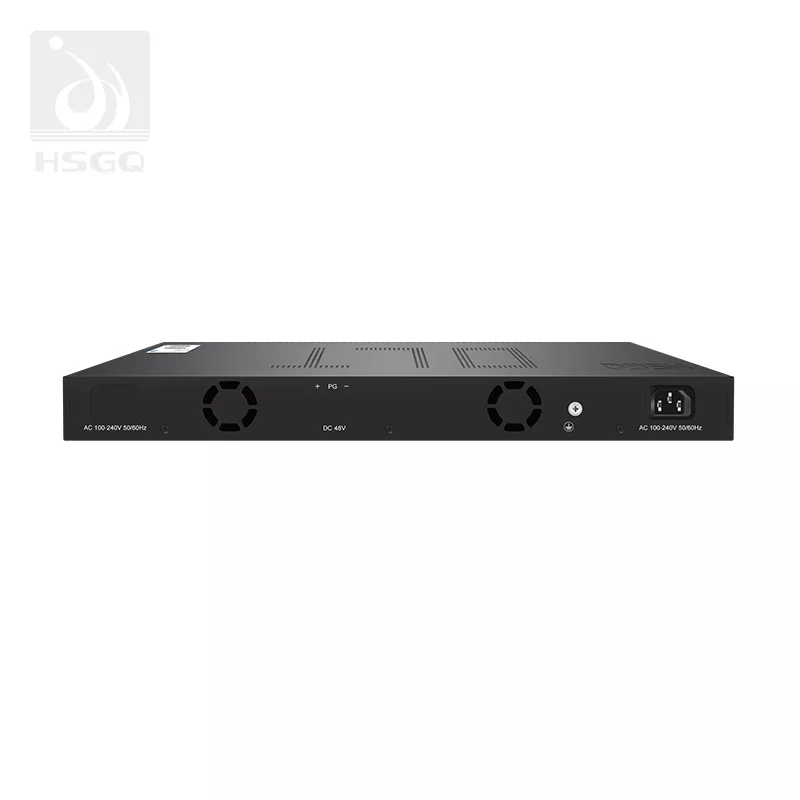

HSGQ-G04L
- Carrier-grade GPON Optical Line Terminal designed for FTTH and FTTx broadband access networks.
- Complies with ITU-T G.984 standards for GPON performance, delivering up to 2.5 Gbps downstream and 1.25 Gbps upstream.
- Equipped with 4 GPON ports, each supporting a 1:128 split ratio and up to 512 ONUs total.
- Rich uplink options: 4× GE RJ45, 2× GE SFP, and 2× 10G SFP+ ports for flexible network expansion.
- Supports Web GUI, CLI, SNMP and optional cloud-based NMS for simplified configuration and monitoring.
- Advanced service features including VLAN, QoS, ACL, IGMP snooping, loop detection, and traffic shaping for optimized broadband service delivery.
- Dual power redundancy option (AC & DC) increases reliability and uptime in critical deployments.
- Compact 1U rackmount chassis with low power consumption and rugged build suitable for ISP and telecom infrastructure.

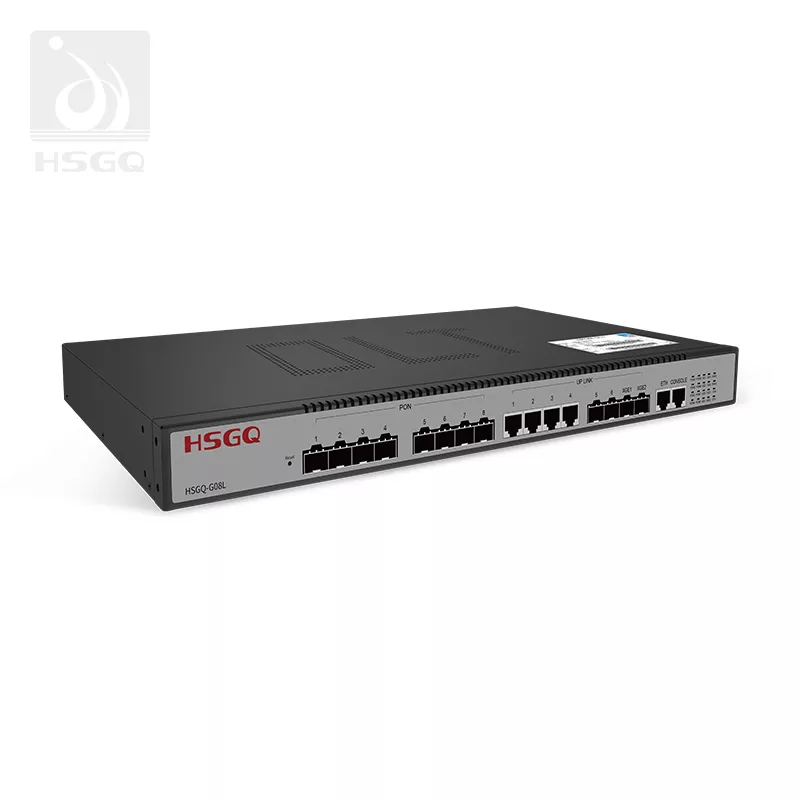

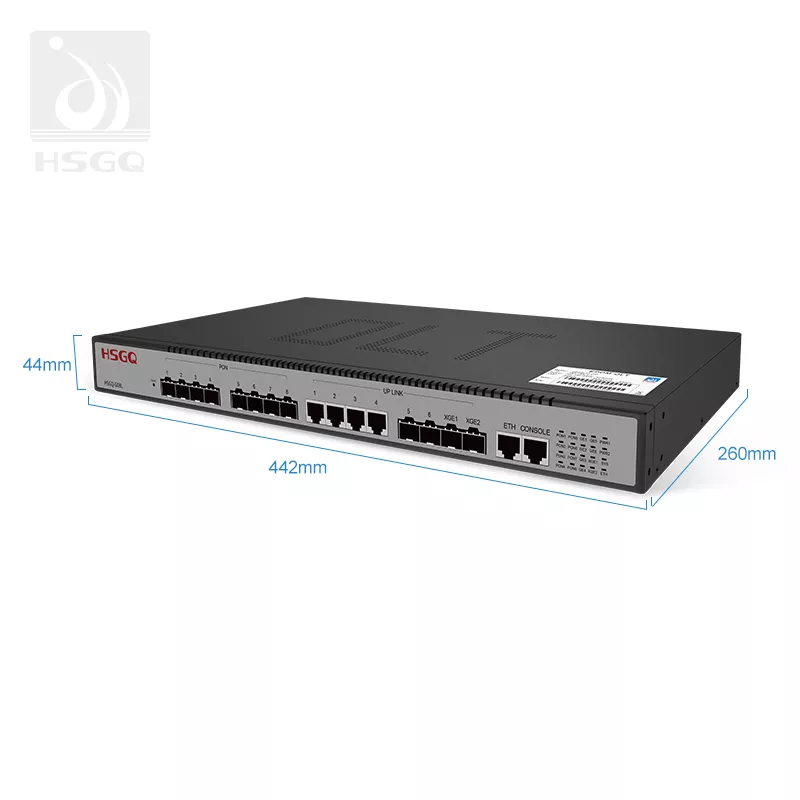

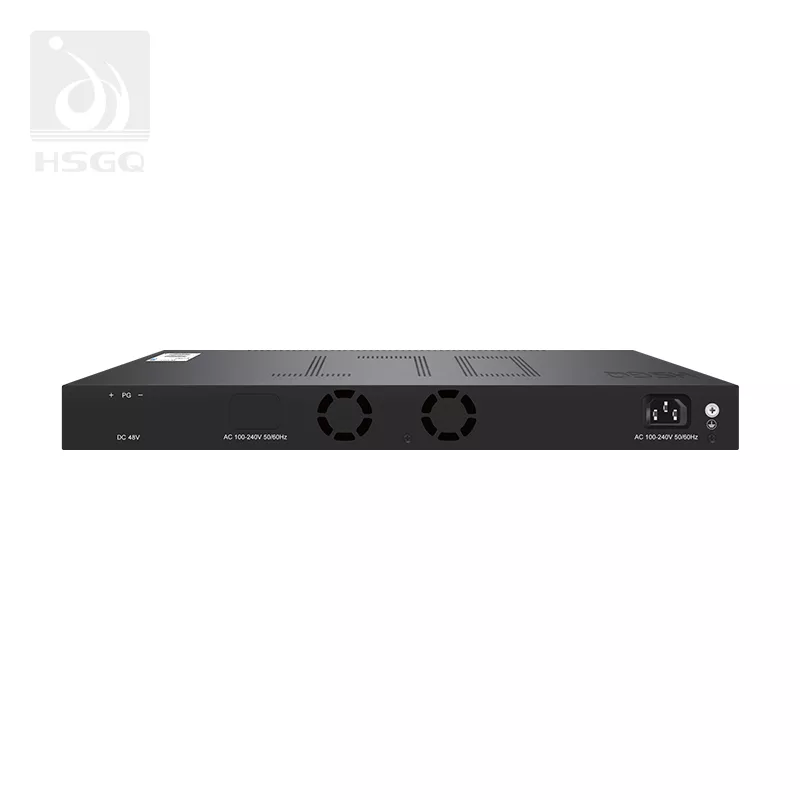

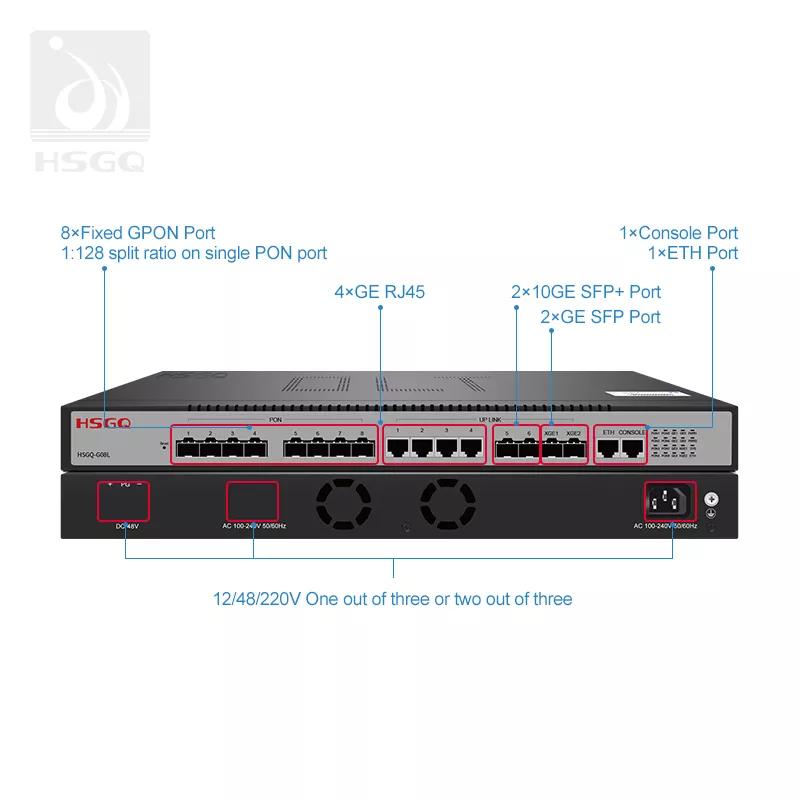

8 Port GPON OLT
HSGQ-G08L
- 8* fixed GPON port OLT designed for FTTH and FTTx broadband access.
- Supports high bandwidth access with up to 2.5 Gbps downstream and 1.25 Gbps upstream.
- 8 GPON interfaces with up to 1:128 split ratio per port, supporting up to 1024 ONUs overall.
- Rich uplink interfaces including 4× GE RJ45, 2× GE SFP and 2× 10G SFP+ for flexible network expansion.
- Supports multiple management methods such as Web GUI, CLI, SNMP and cloud management for easy configuration and monitoring.
- Stable and reliable performance with efficient heat dissipation and remote management support.
- Compact 1U chassis design, low power consumption and suitable for ISP/enterprise deployments.
- Additional features include VLAN, QoS, loop detection, traffic control and optional dual power redundancy.

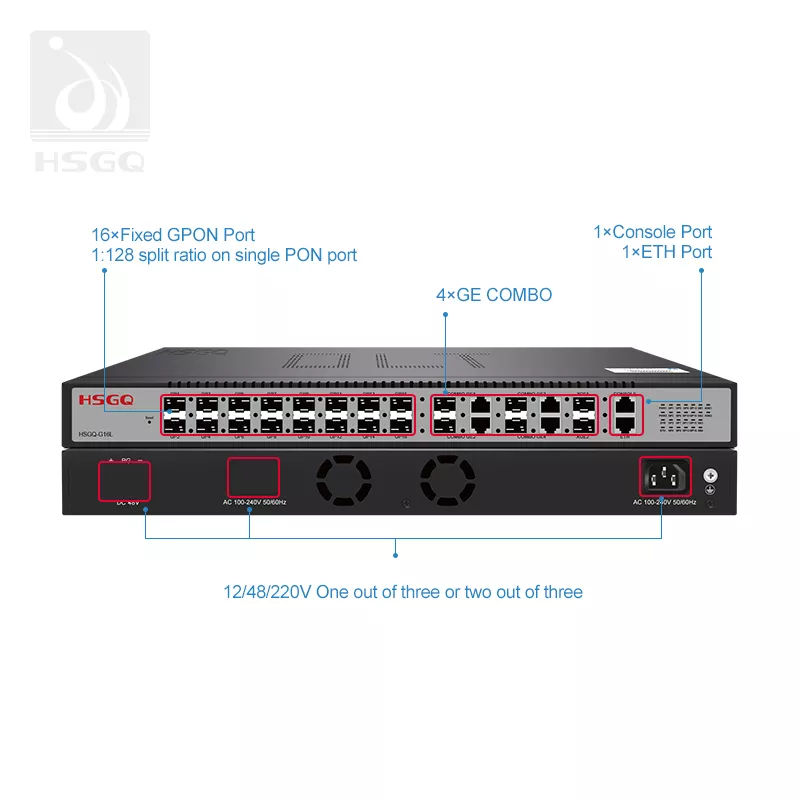

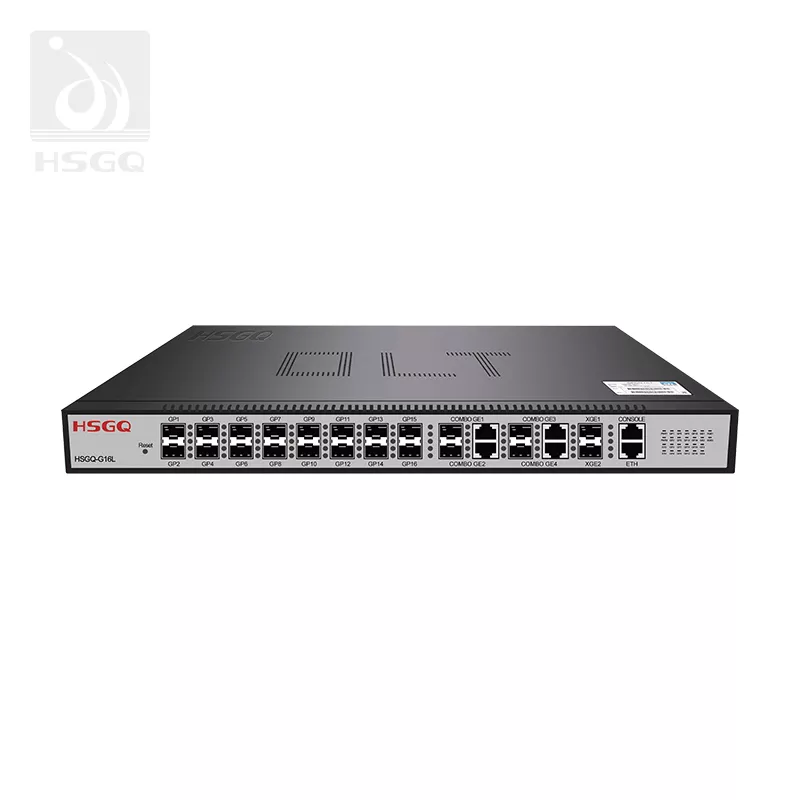

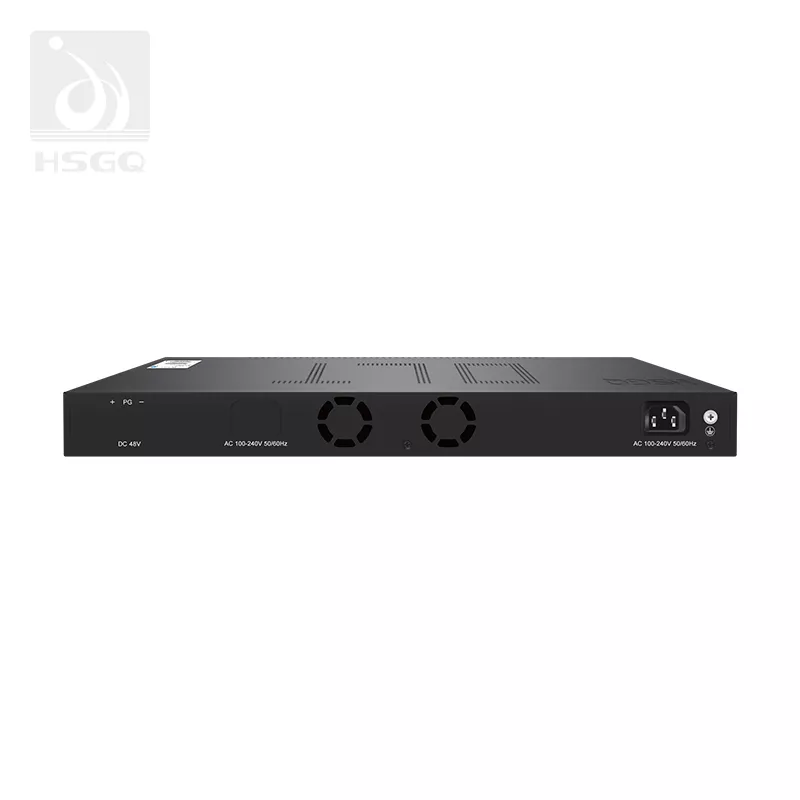

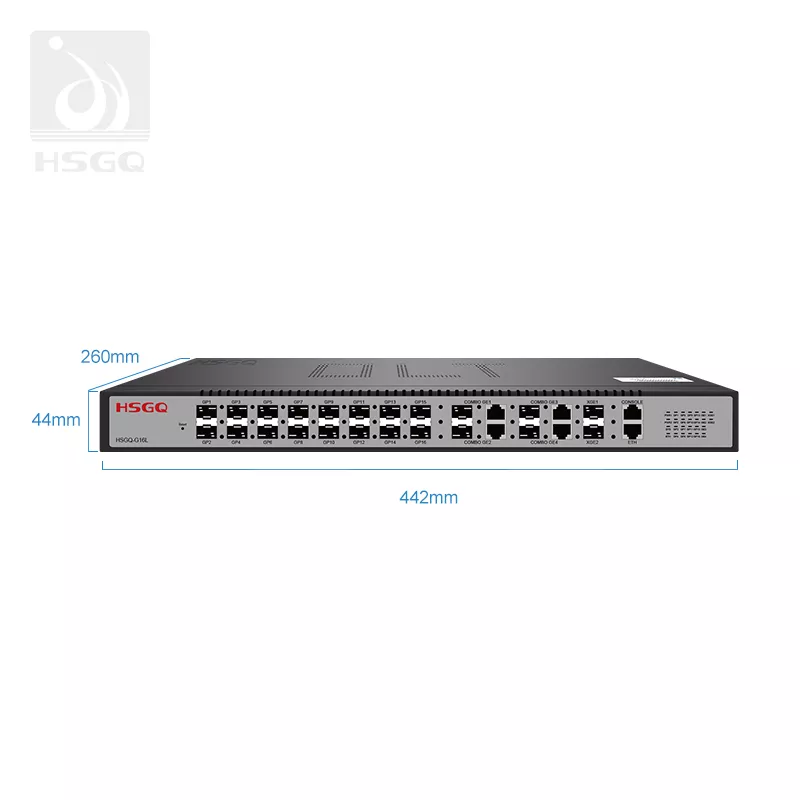

16 Port GPON OLT
HSGQ-G16L
- High-capacity GPON Optical Line Terminal with 16* fixed GPON ports for FTTH and FTTx broadband access.
- Supports upstream/downstream speeds up to 1.25 Gbps/2.5 Gbps per PON port for bandwidth-intensive services.
- Equipped with 16 GPON interfaces, each supporting up to 1:128 split ratio — up to 2048 ONUs total.
- Rich uplink connectivity including 4* GE COMBO (RJ45/SFP) ports and 2* 10G SFP+ ports for flexible network expansion.
- Supports multiple management options: Web GUI, CLI, SNMP, and cloud management for easy configuration and monitoring.
- Carrier-grade reliability with support for dual power redundancy (AC + DC optional) and remote maintenance features.
- Compact 1U rackmount design with efficient heat dissipation ideal for ISP and enterprise network deployments.
- Advanced service features including VLAN, QoS, multicast control, traffic shaping, and loop detection.

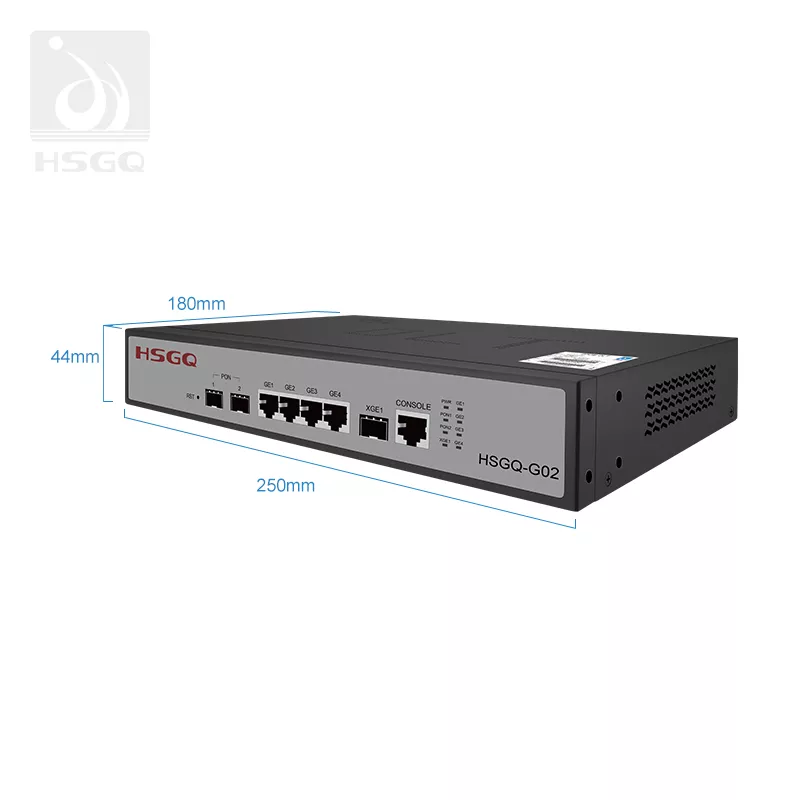

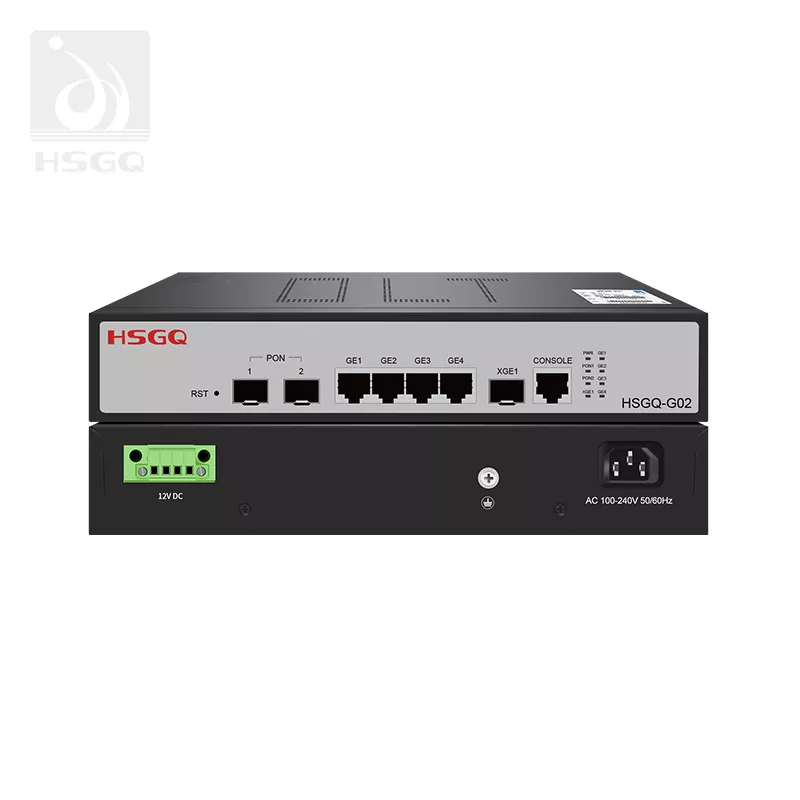

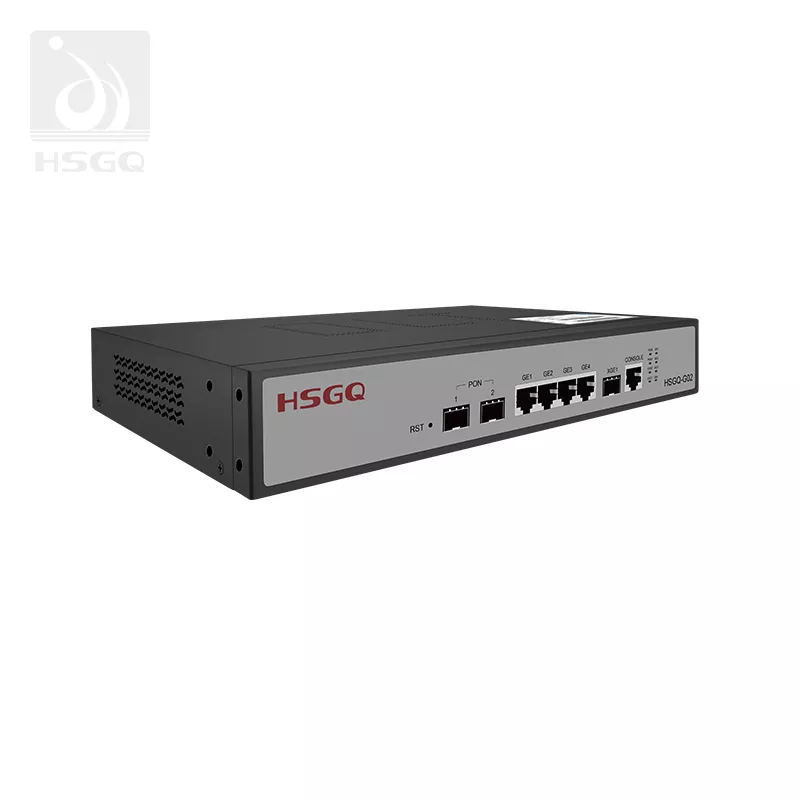

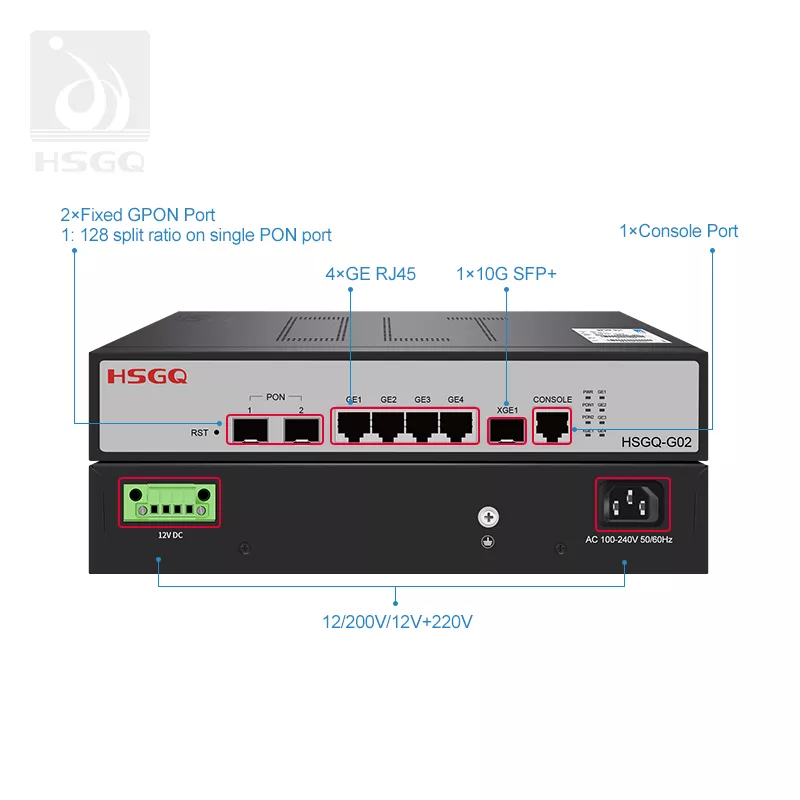

2 Port GPON OLT

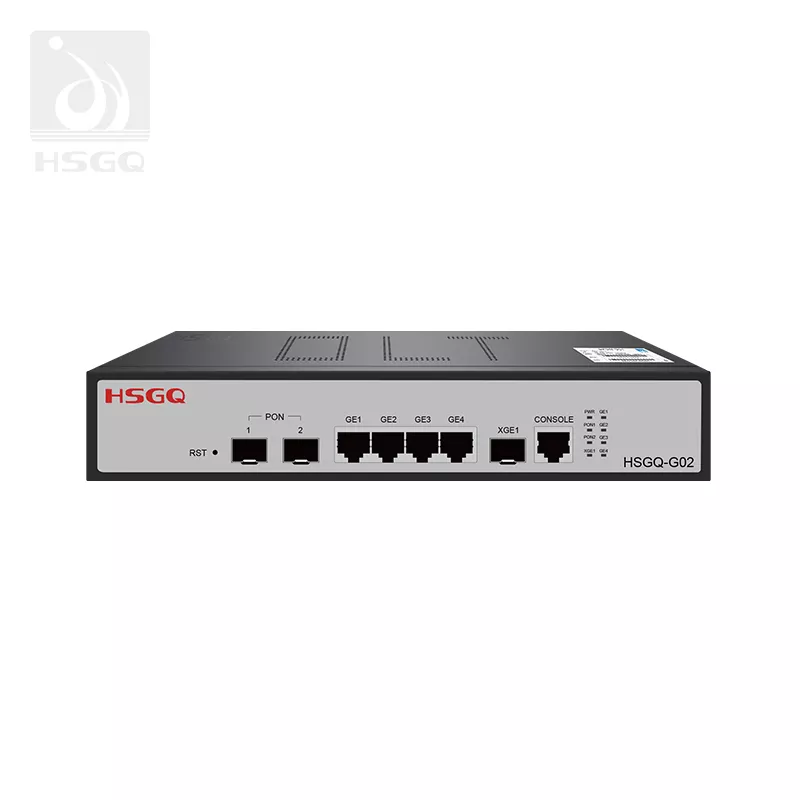

HSGQ-G02
- Compact GPON Optical Line Terminal with 2 fixed GPON ports, ideal for small FTTH/FTTx broadband access deployments.
- Supports ITU-T G.984/G.988 standard GPON access with up to 2.5 Gbps downstream and 1.25 Gbps upstream bandwidth.
- 2 GPON downstream interfaces support up to 1:128 split ratio per port, enabling connection of up to 256 ONUs total.
- 4× GE RJ45 ports and 1× 10G SFP+ uplink port provide flexible uplink/backhaul connectivity.
- Small 1U cassette design makes installation easy and space-saving for micro broadband or enterprise network edges.
- Supports standard management and maintenance functions with OMCI, VLAN, traffic control, and remote monitoring features.
- Suitable for broadband access, video surveillance networks, enterprise LAN, and IoT network expansions.
- Reliable performance with efficient power consumption and optional dual power support for enhanced uptime.

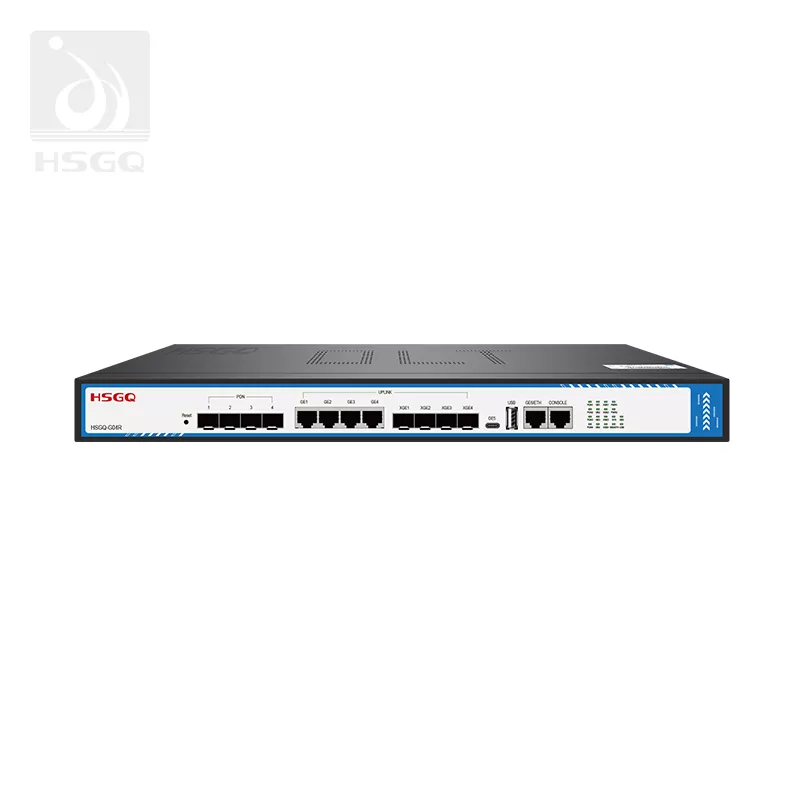

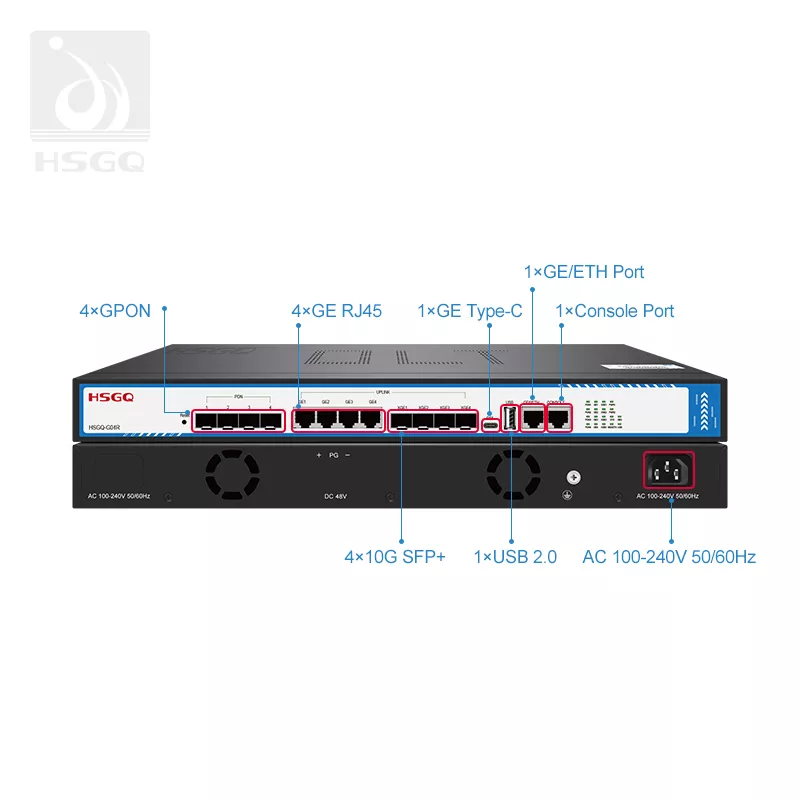

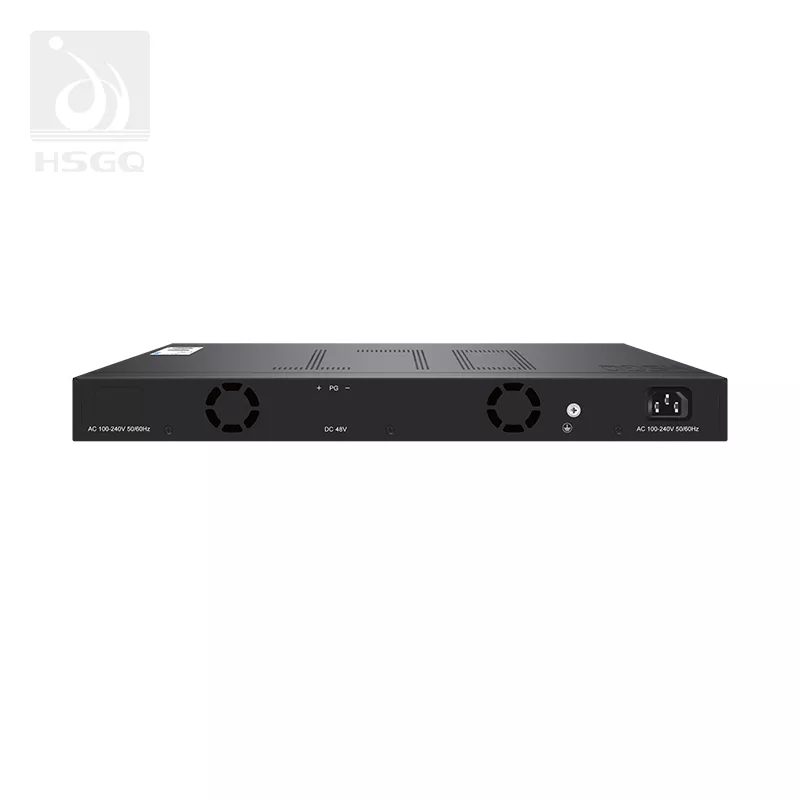

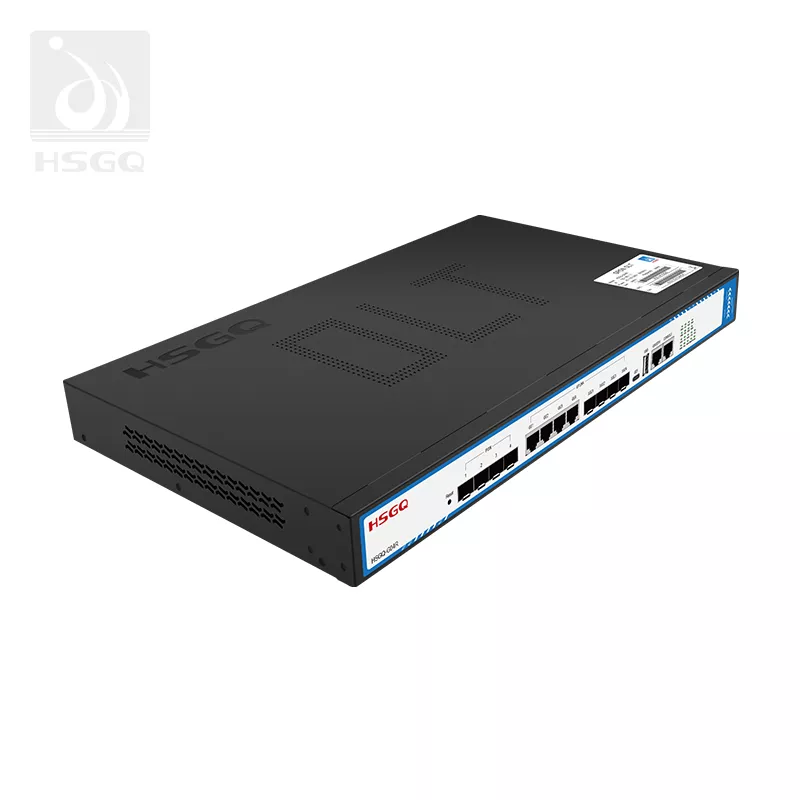

4 Port 10G GPON OLT

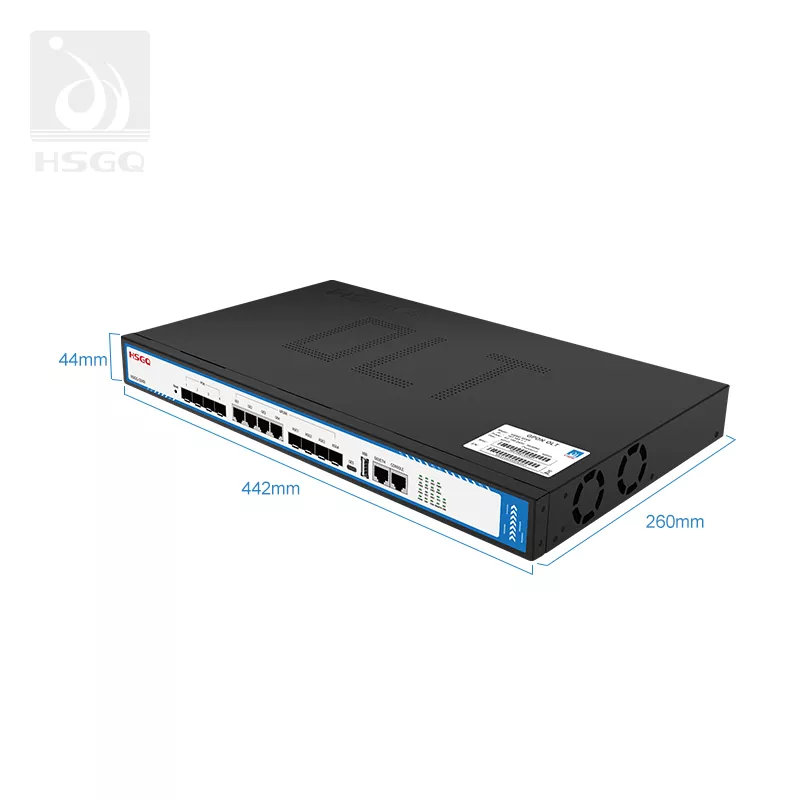

HSGQ-G04R
- Carrier-grade box-type GPON Optical Line Terminal with 4* fixed GPON ports for FTTH/FTTB/FTTx access networks.
- Supports ITU-T G.984 IPON standard with up to 2.488 Gbps downstream and 1.244 Gbps upstream.
- 4 GPON interfaces support up to 1:128 split ratio for up to 512 total ONUs.
- Rich uplink connectivity: 4× GE RJ45, 4× 10G SFP+, 1× GE Type-C management port, and 1× GE/ETH combo interface.
- Supports multiple management methods including WEB GUI, CLI, SNMP, and cloud-based remote deployment & monitoring.
- Optional dual power redundancy (AC + DC) for enhanced reliability and uninterrupted service.
- High switching capacity with efficient performance, suitable for cost-sensitive areas, campuses, and commercial networks.
- Compact 1U rackmount chassis with efficient heat dissipation and low power consumption.

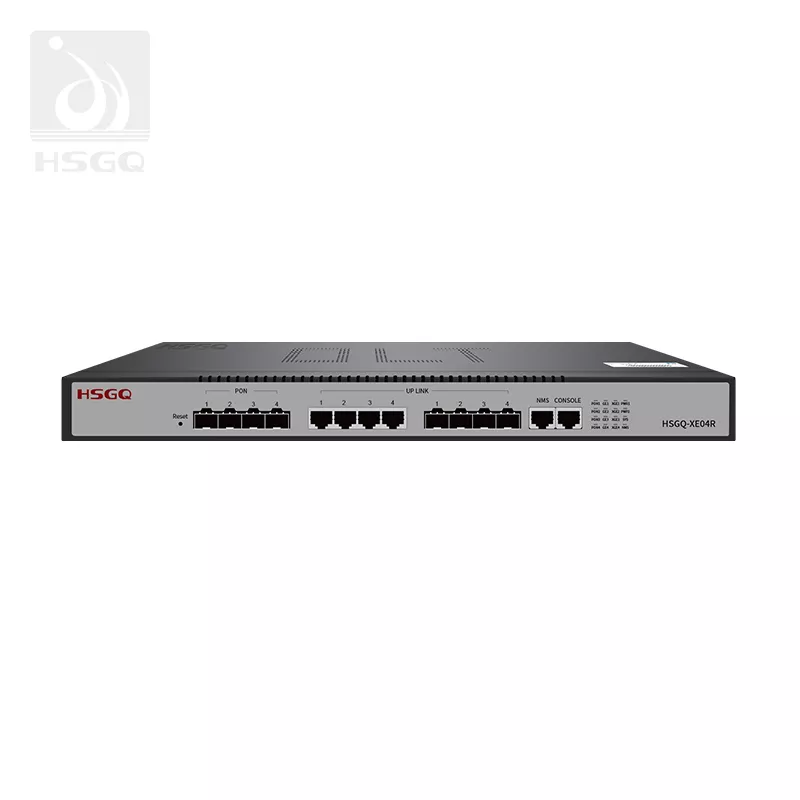

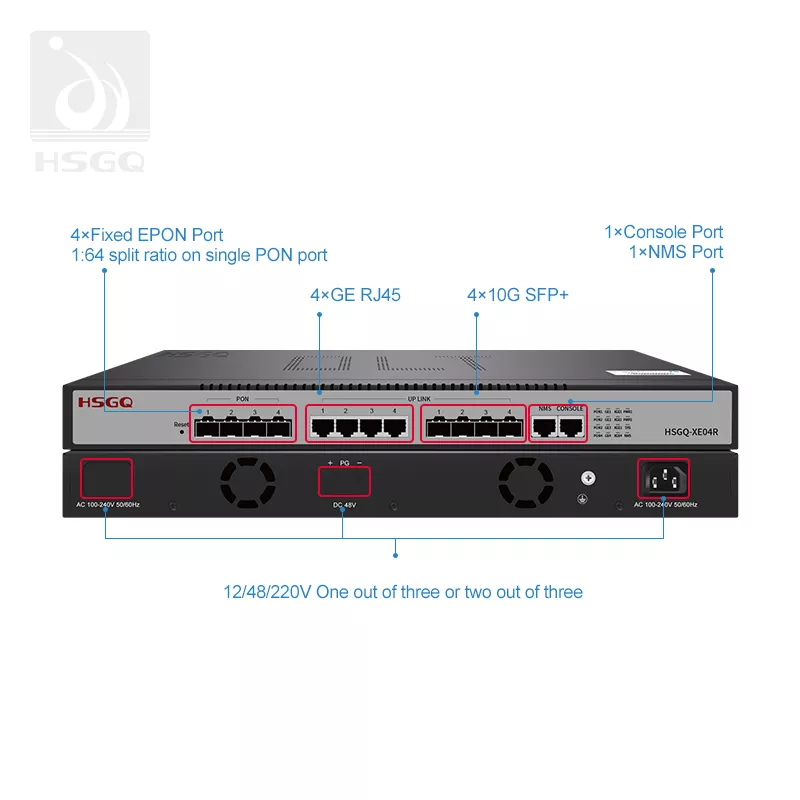

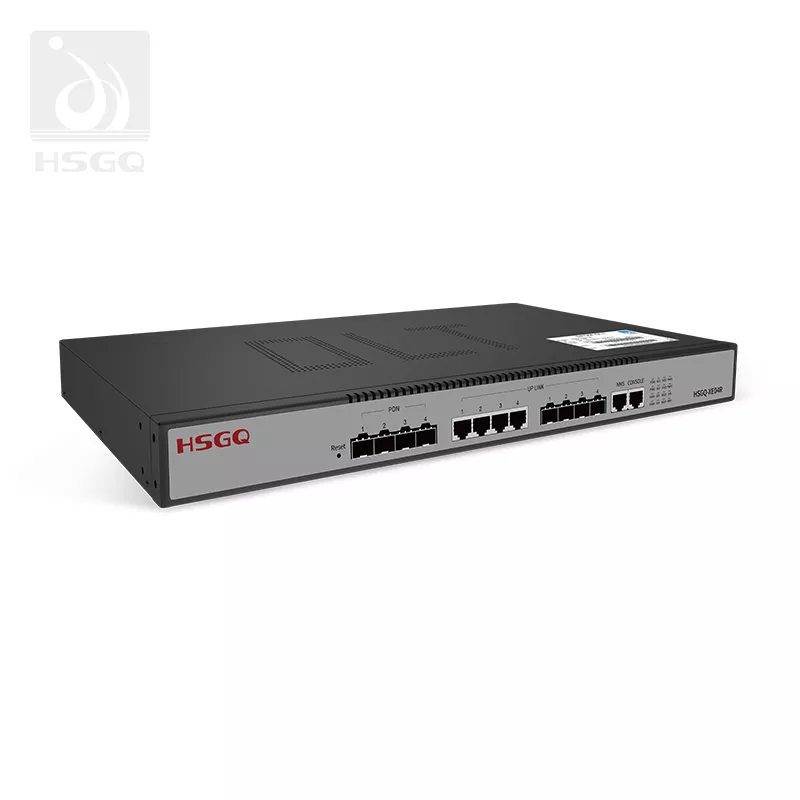

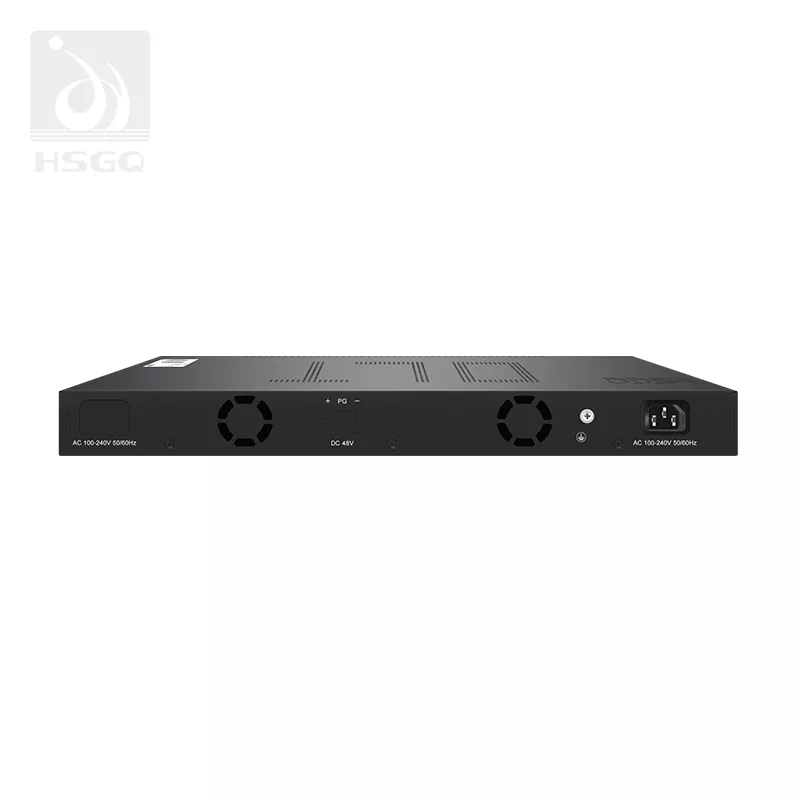

4 Port EPON OLT

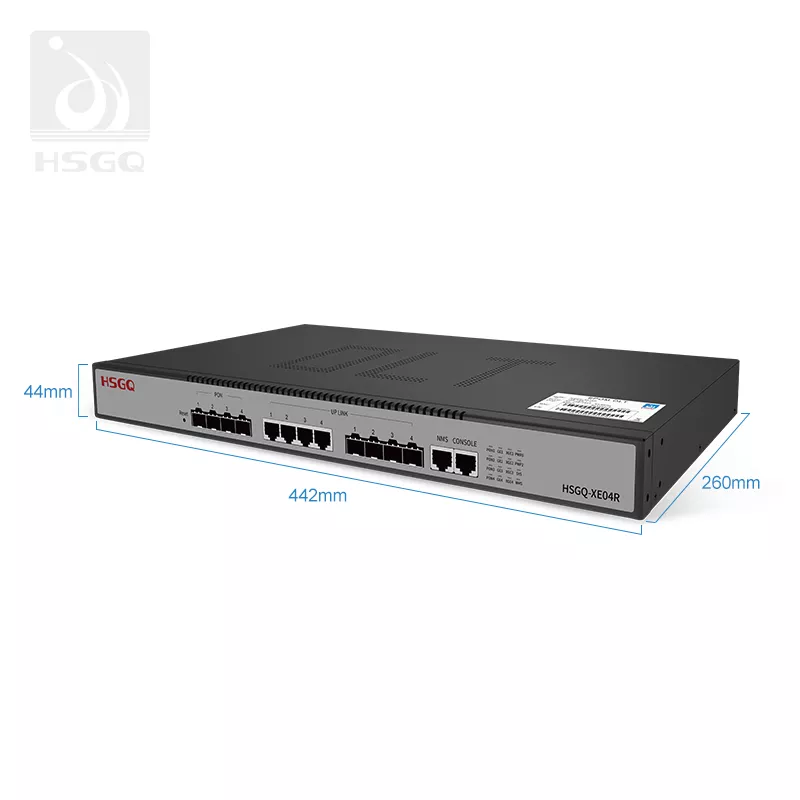

HSGQ‑XE04R
- High‑performance 4‑port EPON Optical Line Terminal designed for FTTH, FTTx and broadband access deployment.
- Supports IEEE 802.3ah EPON standard with flexible port configuration including 4 PON SFP interfaces.
- Equipped with 4× Gigabit Ethernet RJ45 and 4× 1G/10G SFP uplink ports for scalable backhaul and network expansion.
- Maximum splitting ratio per PON port up to 1:64, supporting up to 256 ONUs under full configuration.
- Robust L2/L3 features including VLAN, QinQ, QoS, ACL, IGMP snooping, port aggregation, and automatic ONU registration.
- Supports multiple management interfaces: CLI, Web GUI, SNMP/NMS for flexible configuration and monitoring.
- Dual power supply design (AC + DC options) ensures stable operation and high reliability in critical networks.
- Compact 1U rackmount chassis with efficient cooling, low power consumption, and industrial‑grade build quality.

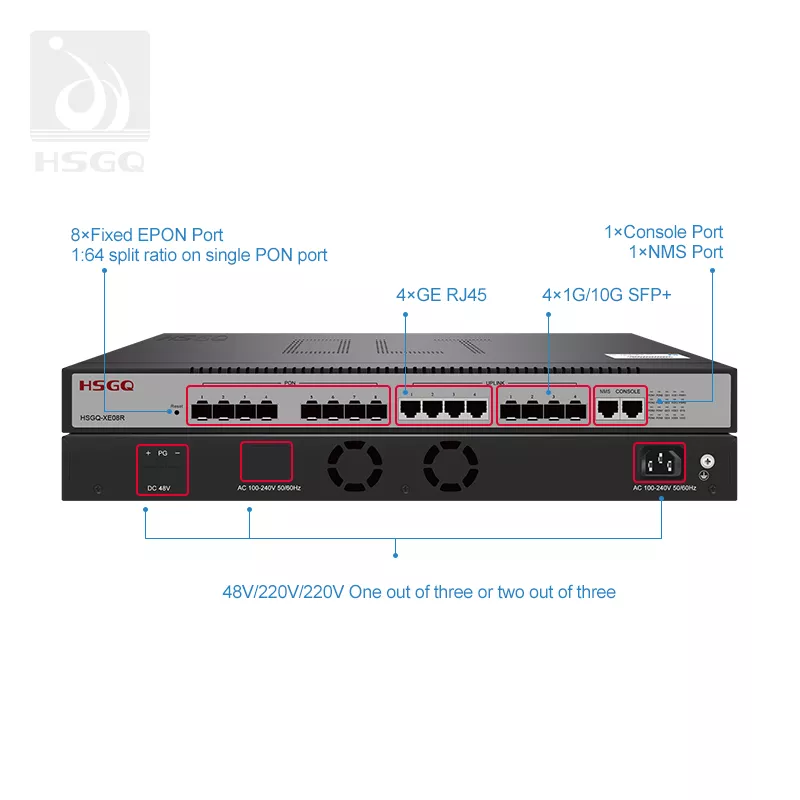

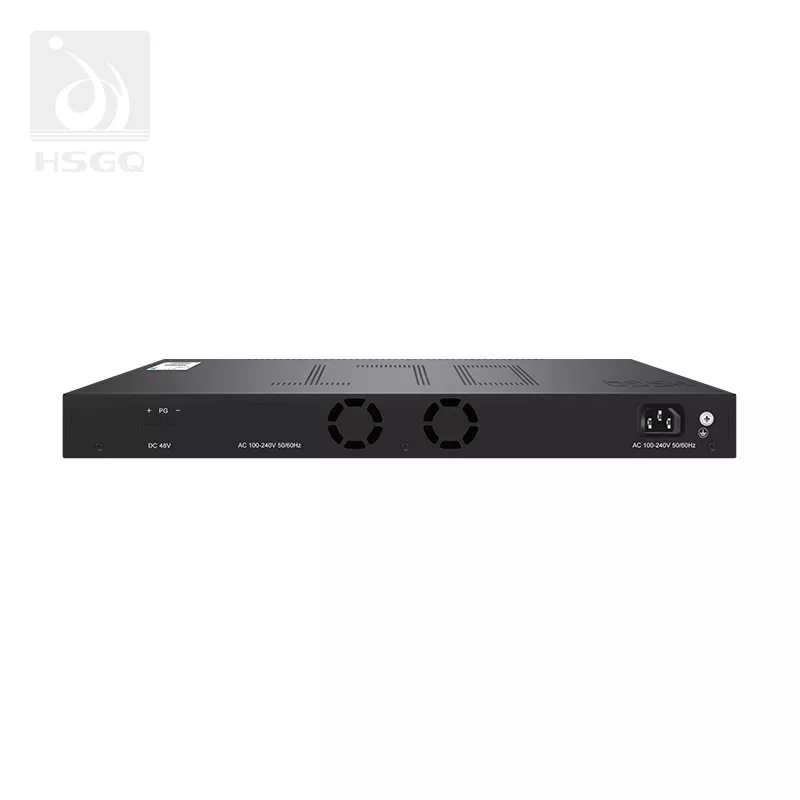

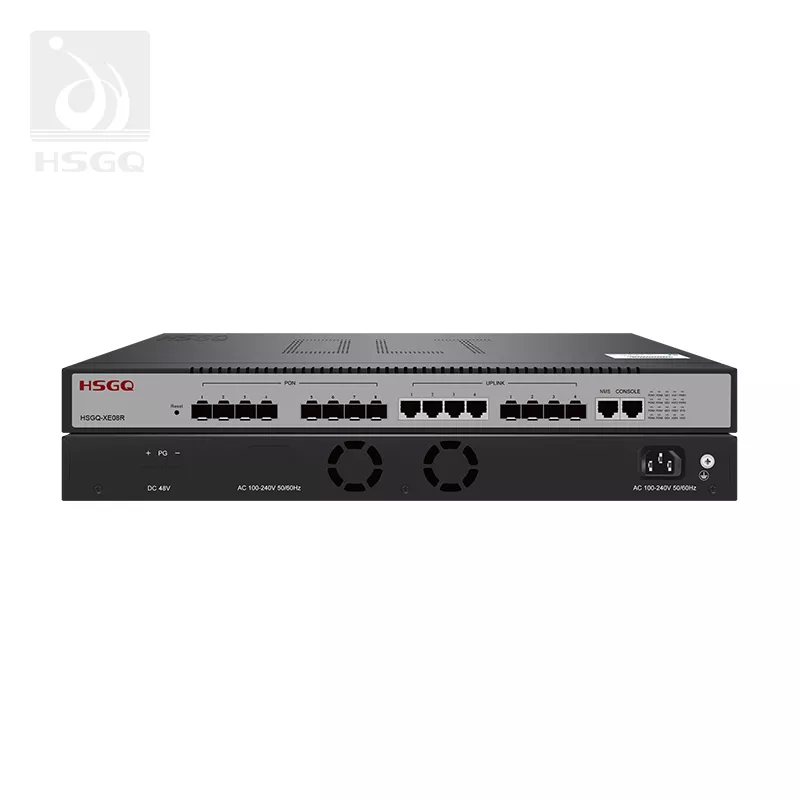

8 Port EPON OLT

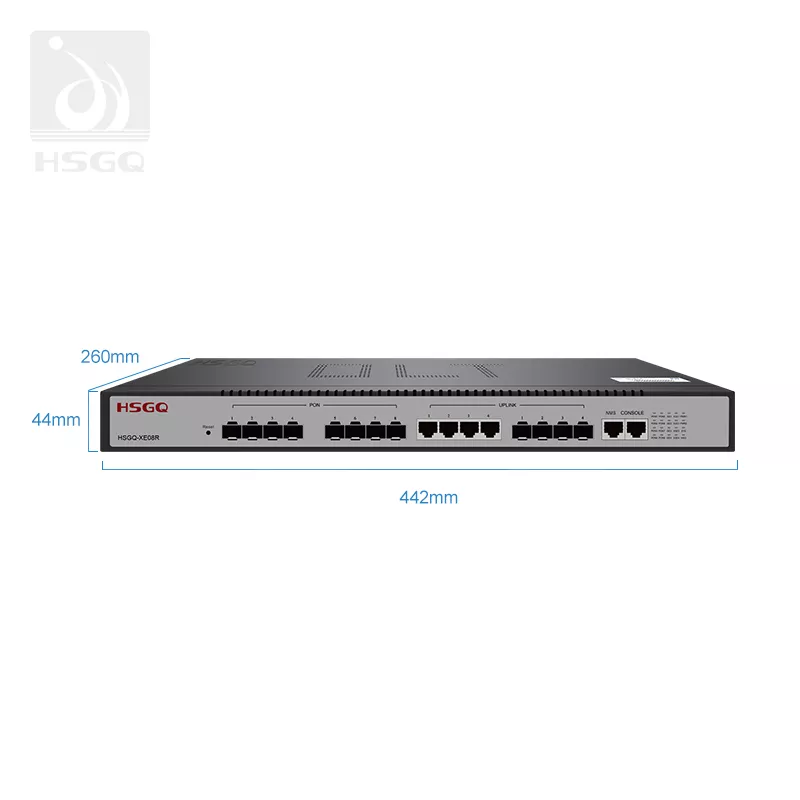

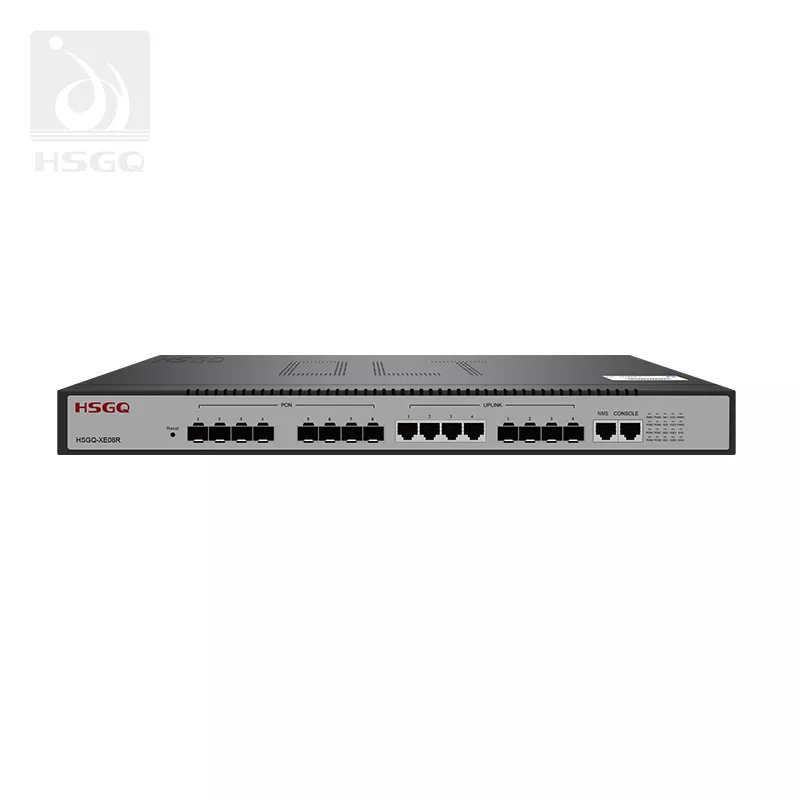

HSGQ‑XE08R
- 8‑Port EPON Optical Line Terminal designed for FTTH, FTTx, and broadband access network deployments.
- Supports IEEE 802.3ah EPON standard with up to 1:64 split ratio per PON port, enabling up to 512 ONU connections under full configuration.
- Up to 8 fixed EPON SFP downlink interfaces for scalable fiber access.
- Rich uplink connectivity: 4× GE RJ45 and 4× 1G/10G SFP+ ports to support high‑speed backhaul and flexible network expansion.
- Supports management via CLI, Web GUI, SNMP/NMS, and optional cloud management for remote configuration and monitoring.
- Advanced Layer‑2/L3 features including VLAN, QinQ, QoS, ACL, IGMP snooping, port aggregation, and loop detection for efficient network operation.
- Dual power support (AC + DC optional) for improved reliability and continuous service in critical installations.
- Compact 1U rackmount chassis with low power consumption and efficient cooling, suitable for ISP and enterprise deployments.

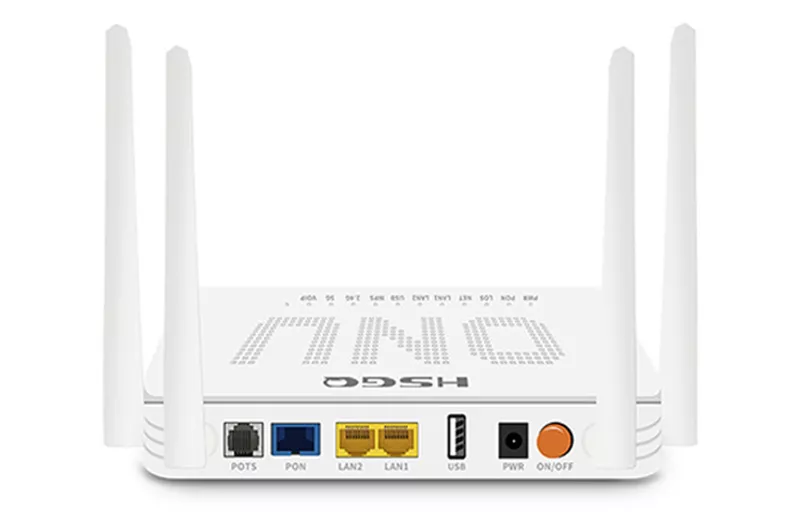

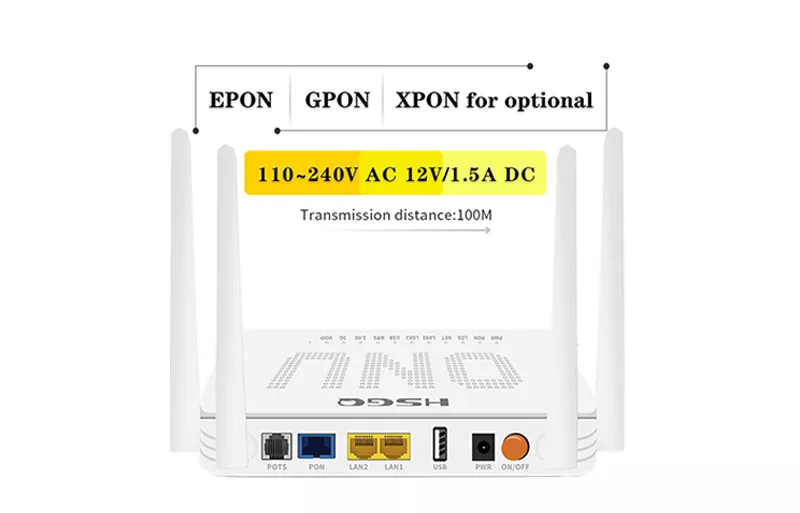

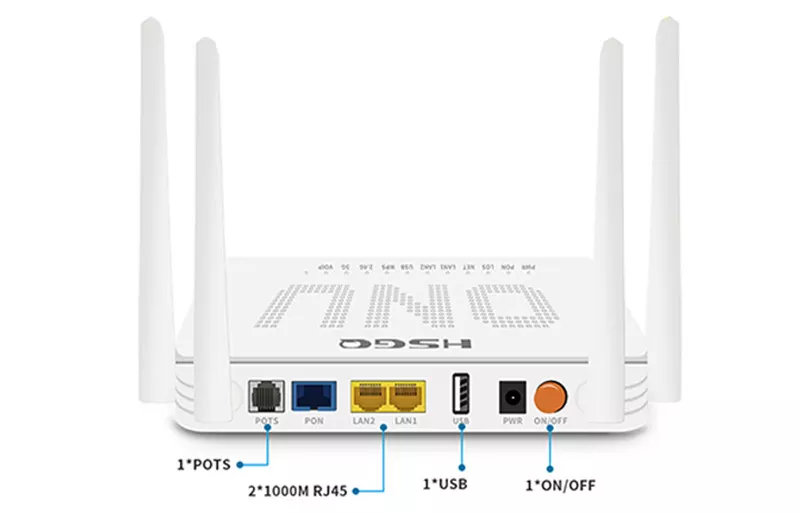

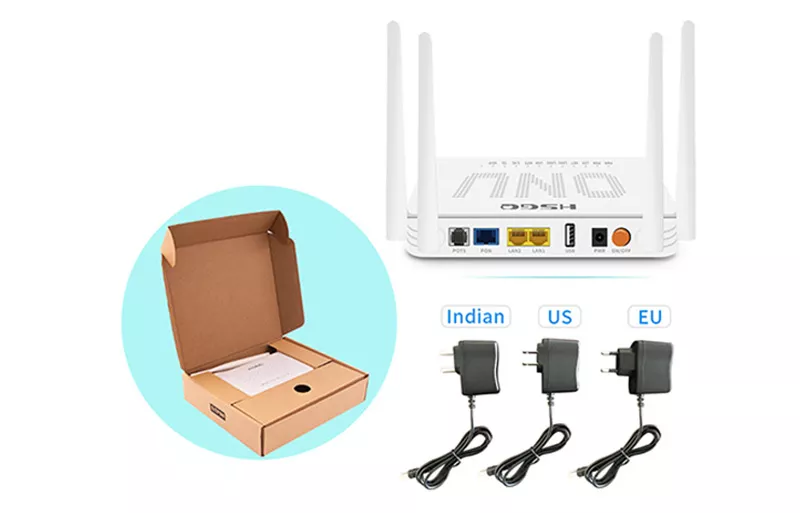

Dual‑Band XPON ONU
HSGQ‑X211DW
- Premium dual‑band XPON ONU with adaptive GPON & EPON support for FTTH/FTTx broadband access.
- Built‑in 2.4 GHz & 5 GHz Wi‑Fi wireless for strong dual‑band coverage and high‑speed home networking.
- 2× 10/100/1000 Mbps Ethernet ports for wired LAN connectivity.
- 1 adaptive PON interface compatible with both EPON & GPON standards (SC‑UPC/APC).
- Supports dynamic bandwidth allocation (DBA), VLAN, ACL, port VLAN separation, QoS and advanced traffic control.
- Remote management supported via TR‑069, OMCI/ONU auto‑discovery, link detection and remote firmware upgrade.
- Voice support with POTS/RFC2833, SIP, H.248 and MGCP protocols (when voice module deployed).
- USB 2.0 interface for storage or service functions.
- Compact design ideal for home, office, or small‑business fiber‑to‑the‑premises deployment.

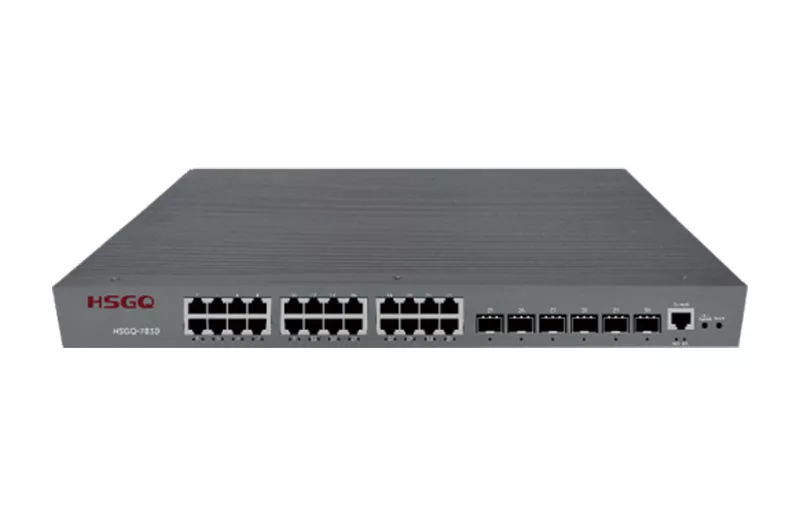

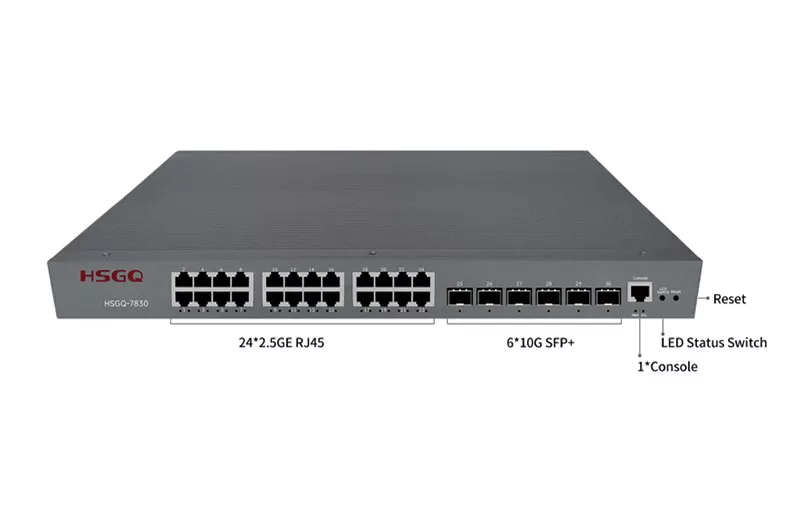

L3 Managed Industrial Switch
HSGQ‑7830
- Layer‑3 managed industrial Ethernet switch with 24 × 2.5 GE RJ45 downlink interfaces and 6 × 10 G SFP+ uplink ports for high‑speed networking.
- Supports comprehensive Layer‑3 features including static routing, RIP, OSPF, DHCP Server/Snooping/Relay, and advanced security policies.
- Full VLAN support including port VLAN, VLAN translation, and Q‑in‑Q for flexible network segmentation.
- Robust QoS and RSTP/MSTP protocols for efficient traffic management and reliable link redundancy.
- High performance with 240 Gbps non‑blocking switching capacity and 179 Mpps forwarding rate.
- Industrial‑grade build with wide operating temperature range (‑40 ℃ to 75 ℃), low power consumption, and strong ESD protection.
- 1 × RS‑232 console port for local management and maintenance.
- Aluminum chassis with rack or desktop mount options suitable for enterprise, campus, community, and ISP network deployments.
L3 Managed PoE Industrial Switch

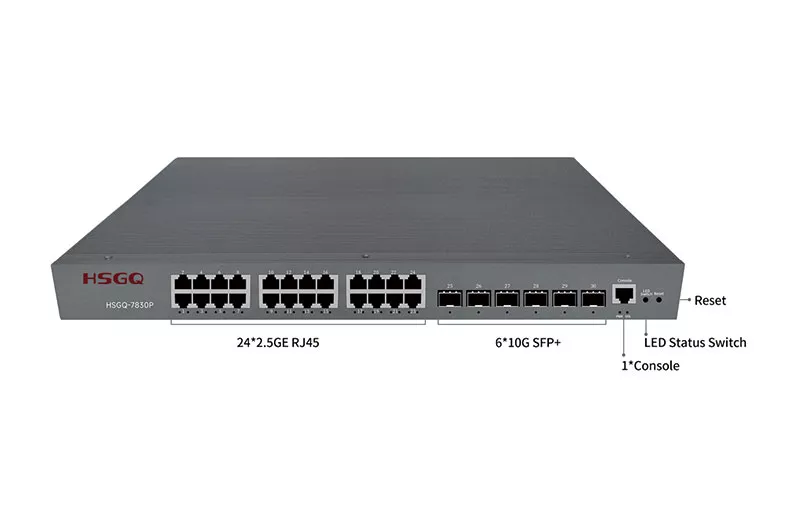

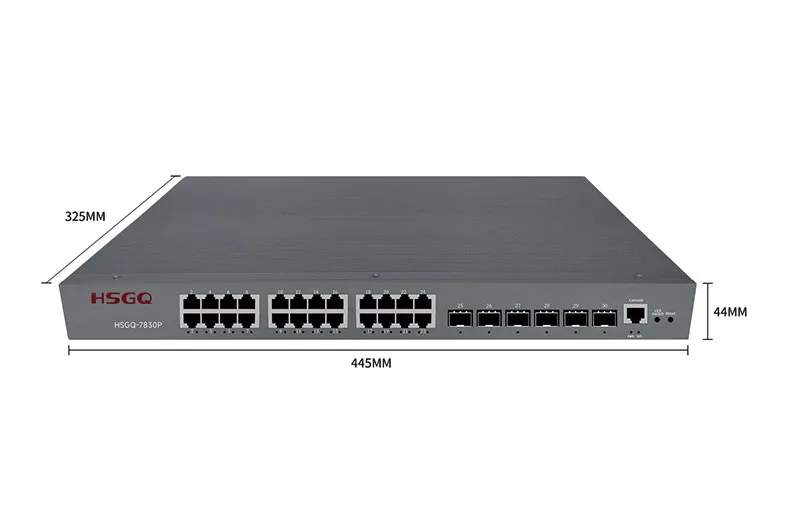

HSGQ‑7830P
- Industrial‑grade Layer‑3 managed PoE switch with 24 × 2.5 GE RJ45 PoE+ downlink ports and 6 × 10 G SFP+ uplink ports.
- Supports PoE standards IEEE 802.3af/at (PSE) with up to 30 W per port and a total PoE budget of up to 400 W — ideal for powering IP cameras, VoIP phones, and wireless APs.
- Comprehensive L3 routing features including static routing, RIP and OSPF, DHCP Server/Snooping/Relay, and advanced security policies.
- Full VLAN support including port VLAN, VLAN translation and Q‑in‑Q for flexible network segmentation.
- Robust QoS and rapid spanning tree protocols (RSTP/MSTP) for improved traffic management and redundancy.
- Non‑blocking 240 Gbps switching capacity with 179 Mpps forwarding rate and 32 K MAC address table.
- Wide operating temperature range from ‑40 ℃ to 75 ℃ and strong ESD protection make it suitable for industrial, campus, and enterprise environments.
- 1 × RS‑232 console port for local management and maintenance.
