VSOL Networking Solutions
Explore the full range of VSOL networking products, including EPON, GPON, and XGS-PON OLTs, ONTs, and SFP/SFP+ modules. Designed for high-performance FTTH and FTTx deployments, our products ensure stable connections, reliable operation, and seamless network efficiency for residential, enterprise, and telecom networks.

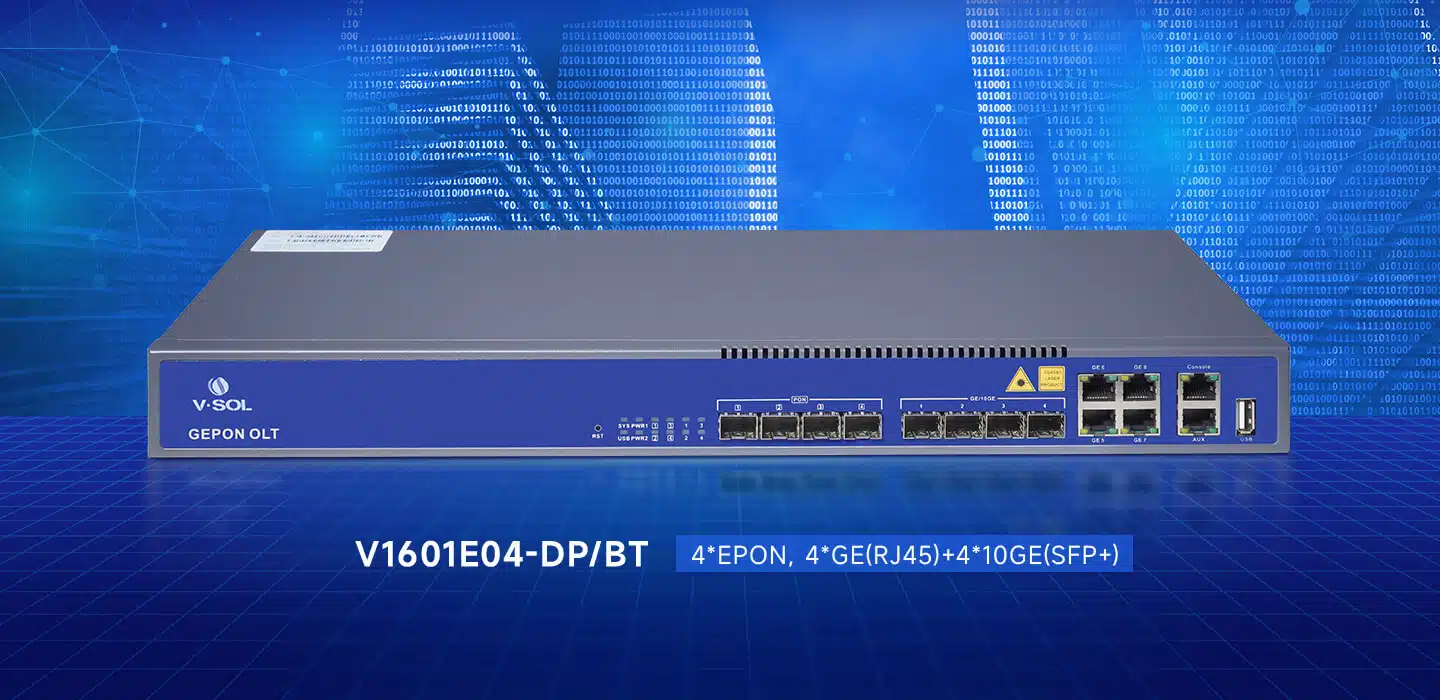

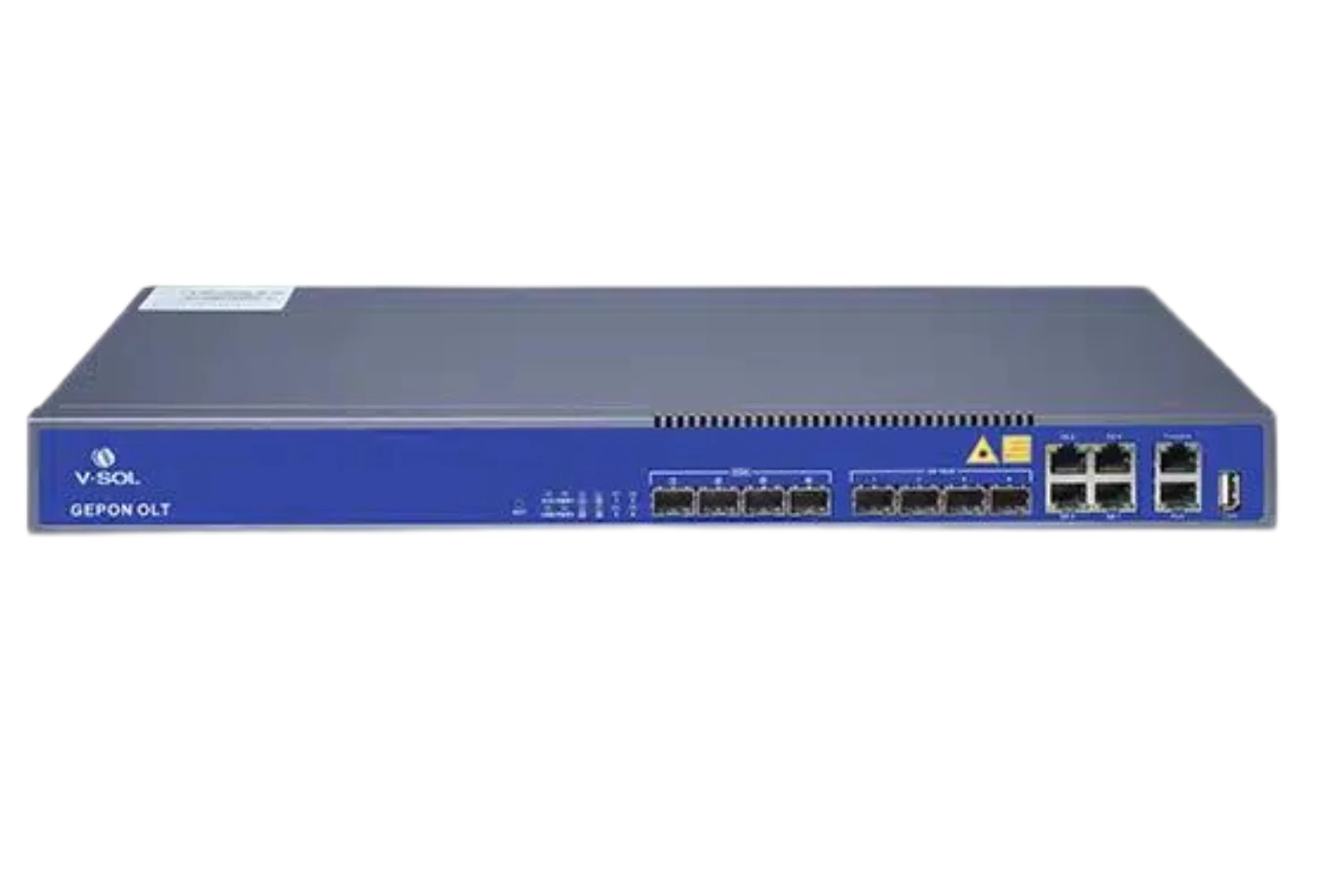

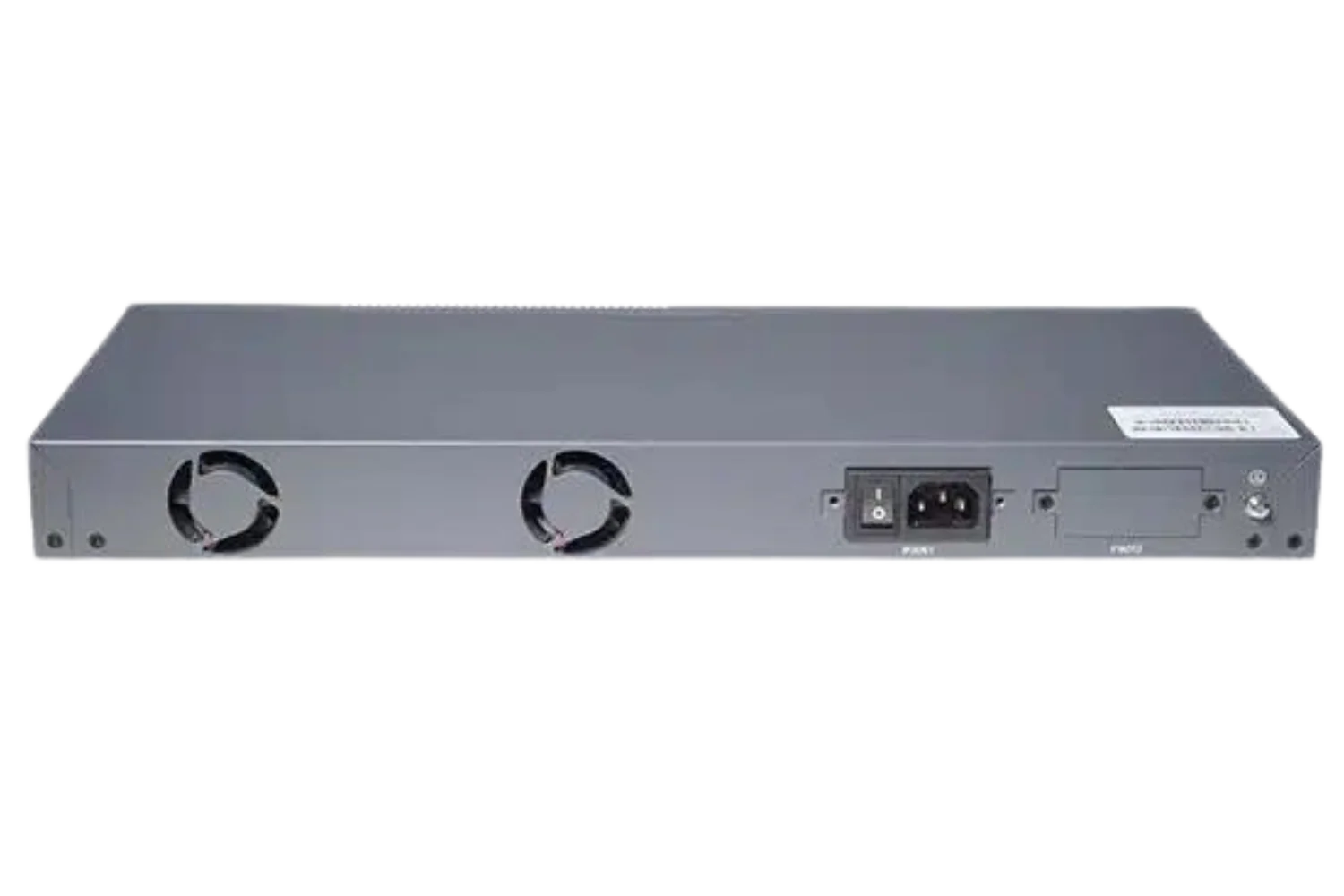

VSOL V1601E04-DP 4 Port EPON OLT
- 4 EPON PON ports supporting up to 256 ONUs (up to 64 per port)
- 8 uplink interfaces: 4 × RJ45 (1G) and 4 × SFP/SFP+
- Rack mountable 1U 19-inch chassis
- EPON port speed: 1.25 Gbps symmetric
- Max optical split ratio: 1:64
- Supports PX20 series PON modules
- Management ports: 1 × out-of-band Ethernet, 1 × console, 1 × USB
- Network management support: WEB, CLI, SNMP, Telnet, SSH
- Supports VLAN, IGMP Snooping, RSTP/MSTP, Dynamic Bandwidth Allocation
- Transmission distance up to 20 km on single-mode fiber
- Operating temperature: -20°C to +60°C
- Power supply: AC 100-240V & DC -48V support
- Compact and robust metal design, weight approx. 2.7 kg

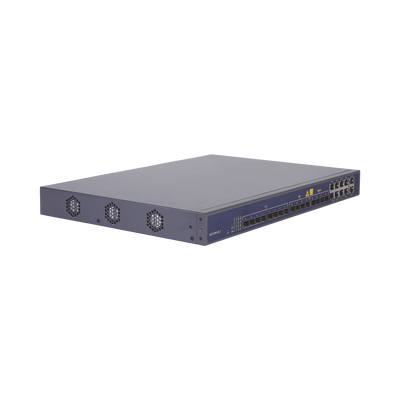

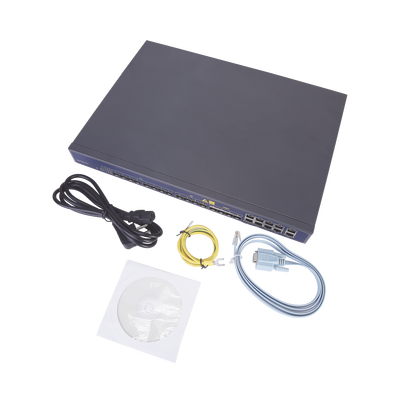

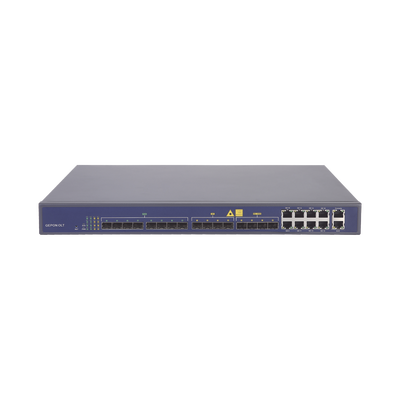

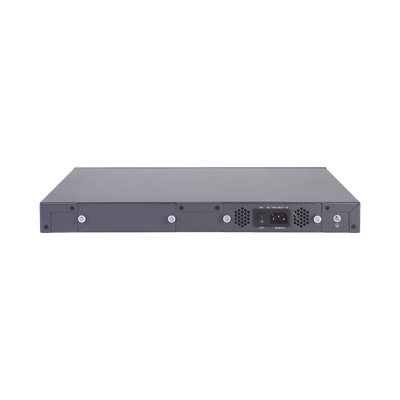

VSOL V1600-D8 8-Port EPON OLT
- 8 EPON downlink ports with support for up to 512 ONUs under 1:64 splitting ratio
- 16 uplink interfaces: 8 × 1 G RJ45, 4 × 1 G SFP, 4 × 10 G SFP+
- 1U 19-inch rack-mountable design for ISP and enterprise fiber networks
- EPON port speed: 1.25 Gbps symmetric per PON port
- Supports IEEE 802.3ah and China CTC standards
- Management modes: WEB, SNMP, CLI, Telnet, SSH
- Optical characteristics: TX 1490 nm / RX 1310 nm, SC/UPC connectors, single-mode fiber
- Up to 20 km transmission distance on each EPON port
- Operating temperature range typically -20 °C to +60 °C
- Power supply: AC 100-240 V and optional DC support
- Compact metal chassis with approximate weight ~4.5 kg

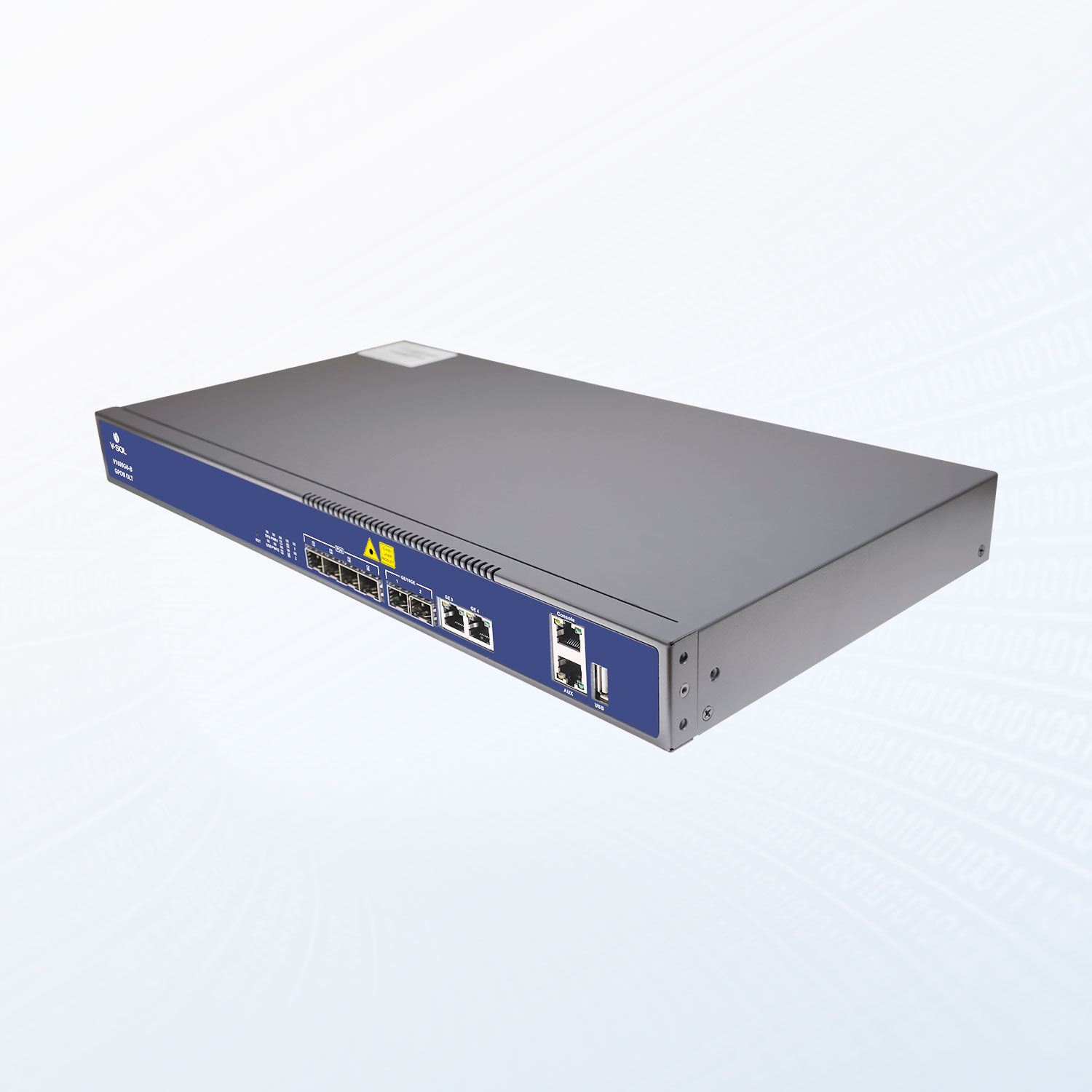

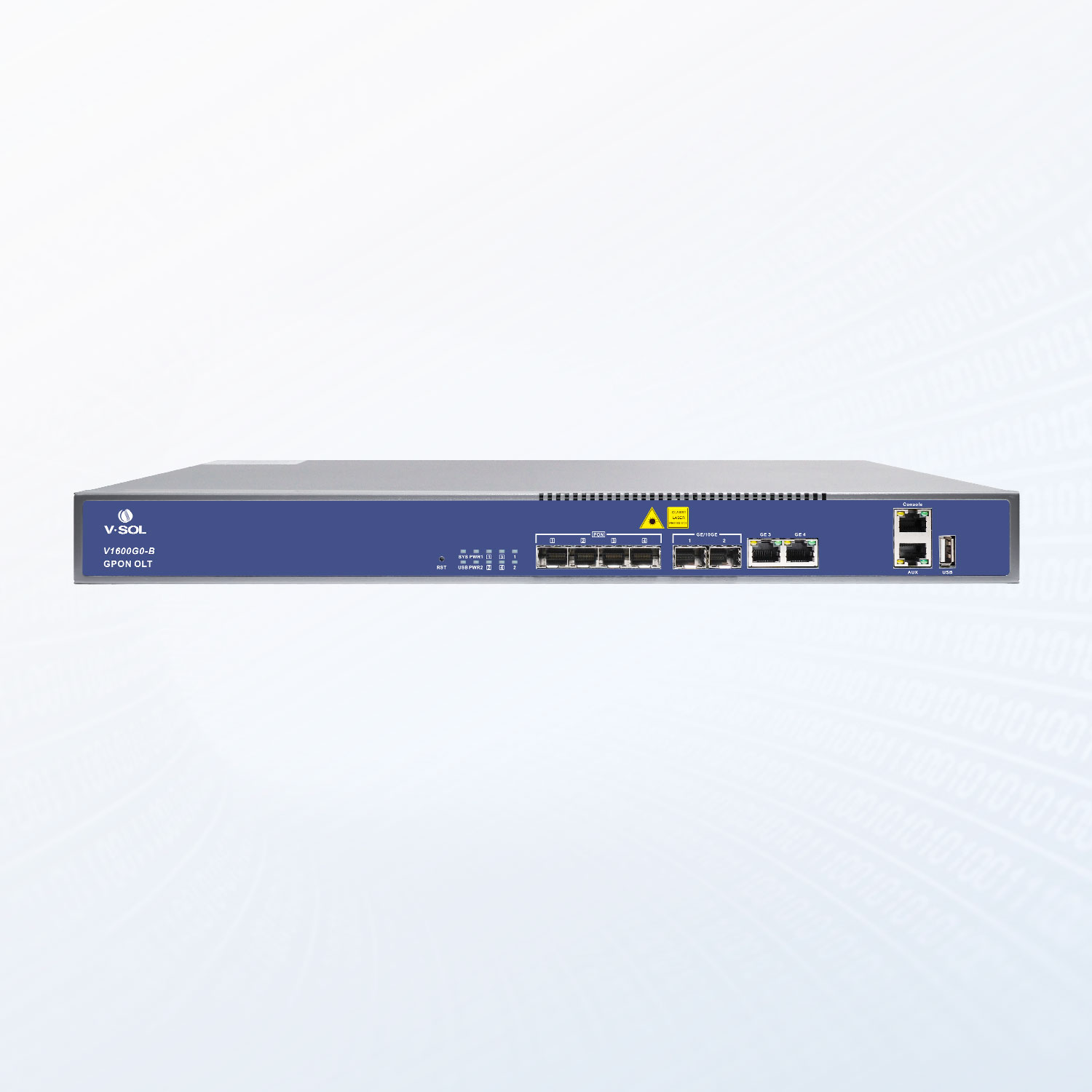

VSOL V1600G0-B 4 Port GPON OLT
- 4 GPON ports supporting up to 128 ONUs per port
- GPON upstream speed up to 1.244 Gbps and downstream up to 2.488 Gbps
- Transmission distance up to 20 km over single-mode fiber
- Supports Class B+, C, C+, C++, and C+++ PON module levels
- 4 uplink ports: 2 × Gigabit RJ45 and 2 × 10 Gigabit SFP+
- 1U 19-inch rack-mount metal chassis
- Max splitting ratio up to 1:128
- Management ports: out-of-band Ethernet, console, USB
- Layer 3 switching capabilities with routing protocols
- Supports VLAN, QoS, ACL, IGMP snooping and other network features
- Dual AC/DC power supply support with redundancy
- Operating temperature range: -20 °C to +60 °C
- Compact, high-performance OLT for FTTH and enterprise networks

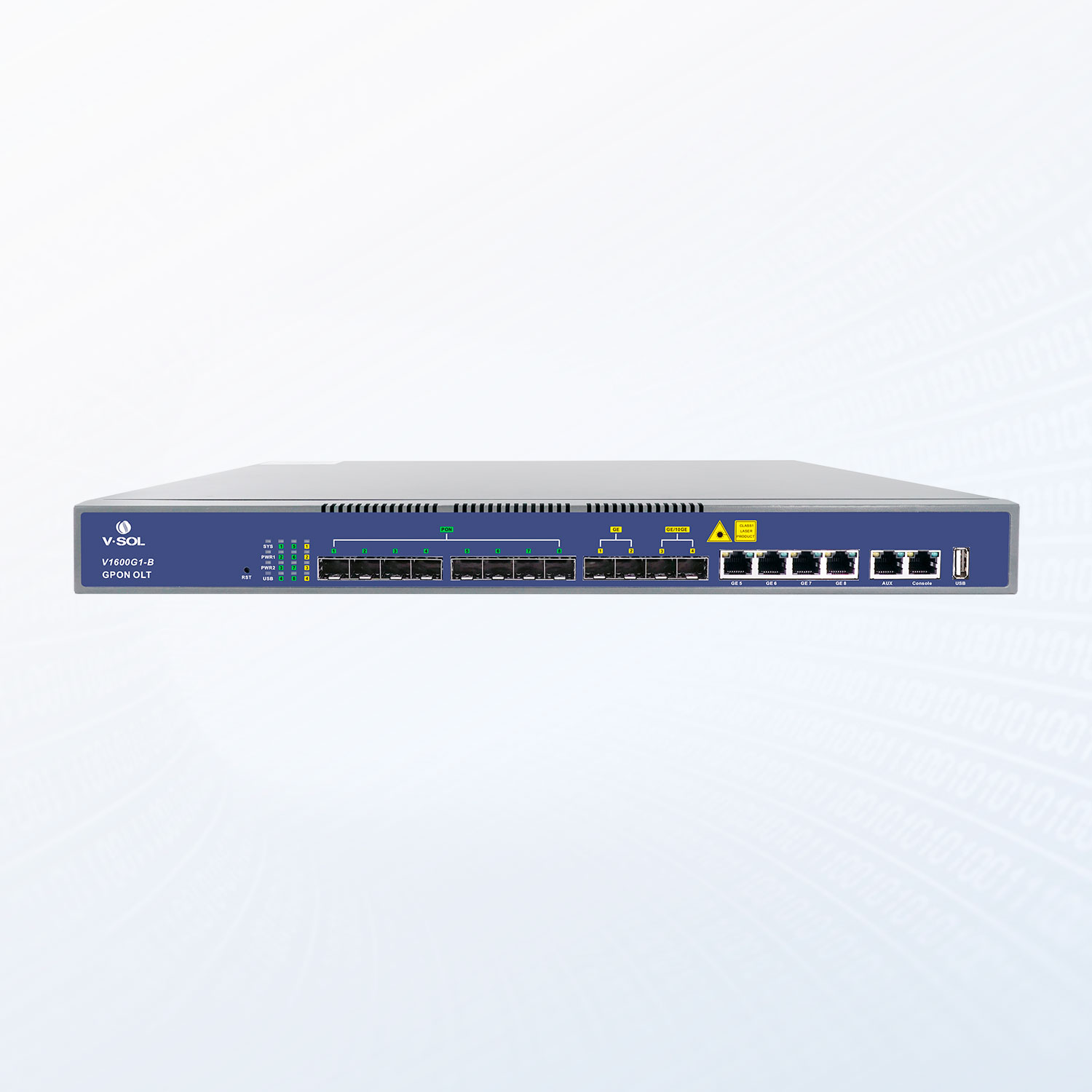

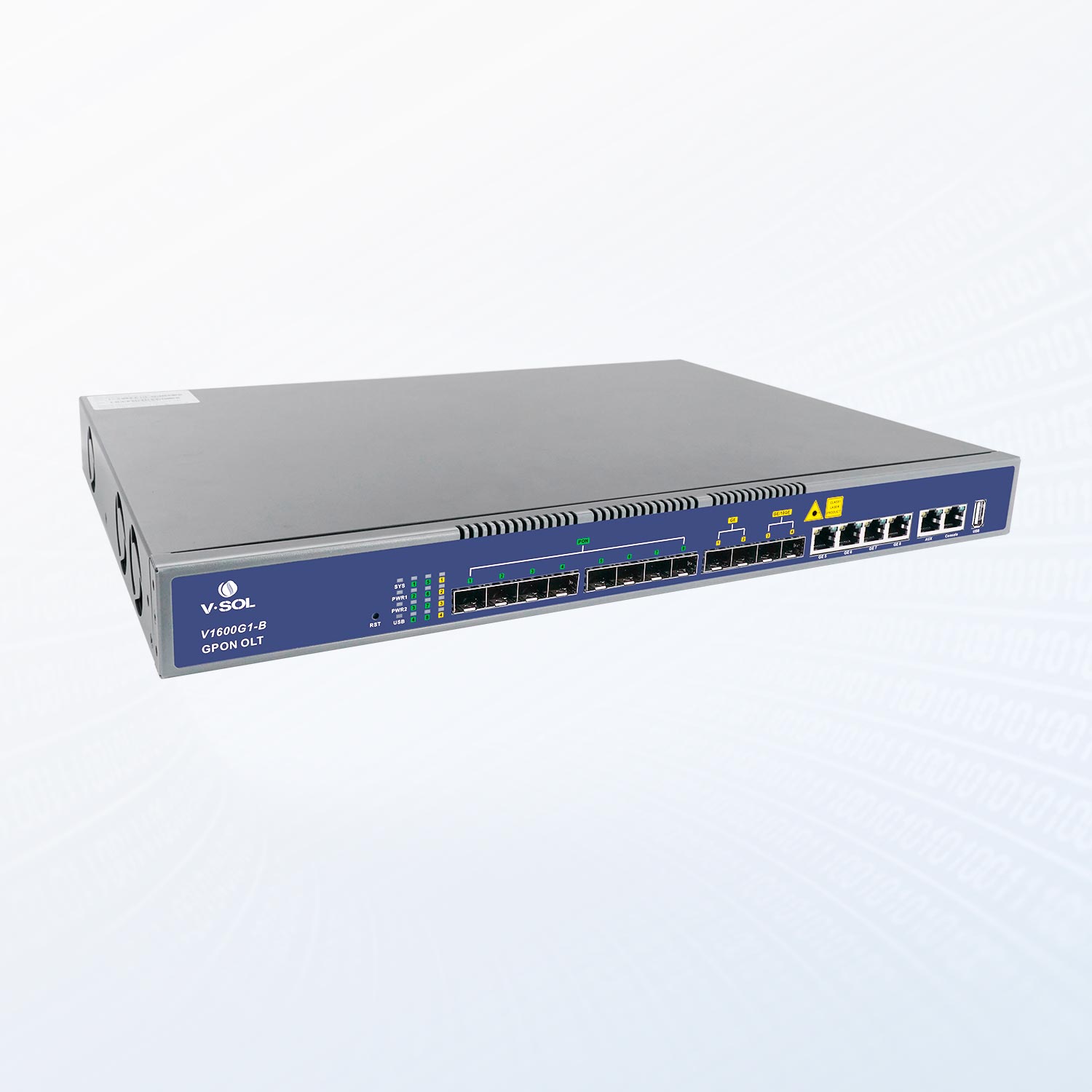

VSOL V1600G1-B 8 Port GPON OLT
- 8 GPON PON ports supporting up to 128 ONUs per PON port
- GPON upstream speed up to 1.244 Gbps and downstream up to 2.488 Gbps
- Transmission distance up to 20 km over single-mode fiber
- Max optical split ratio up to 1:128
- 8 uplink ports: 4 × Gigabit RJ45, 2 × Gigabit SFP, 2 × 10 Gigabit SFP+
- 1U 19-inch rackmount metal chassis design
- Backplane bandwidth of 104 Gbps and forwarding rate around 68 Mpps
- Management interfaces include out-of-band Ethernet, console, and USB
- Supports network management via Web GUI, CLI, SNMP, Telnet, SSH
- Layer-2 and Layer-3 features including VLAN, QoS, multicast, routing protocols
- Supports multiple PON module levels such as Class B+, C, C+, C++, C+++
- Power supply support AC 100-240V and DC -48V options
- Operating temperature range typically -20°C to +60°C

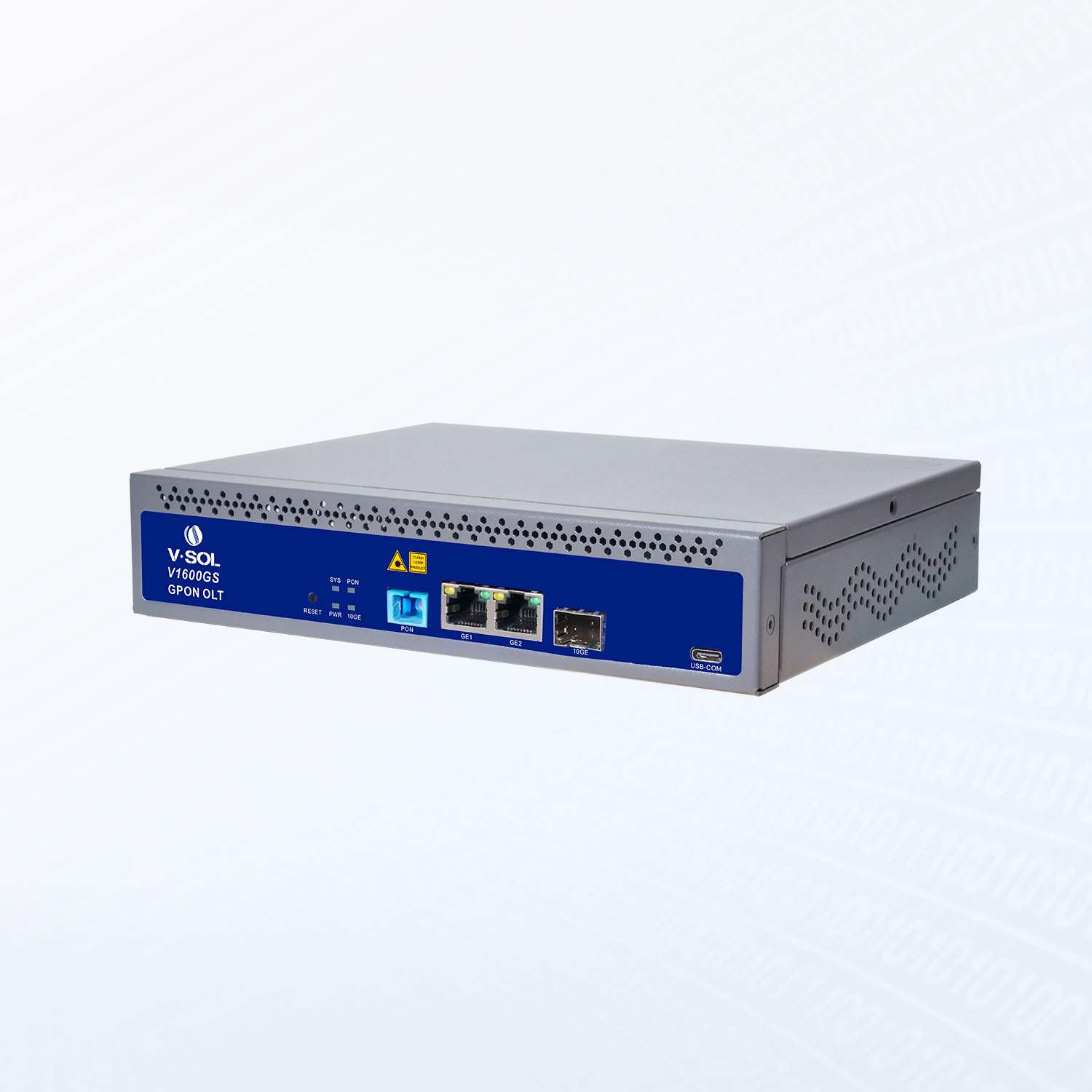

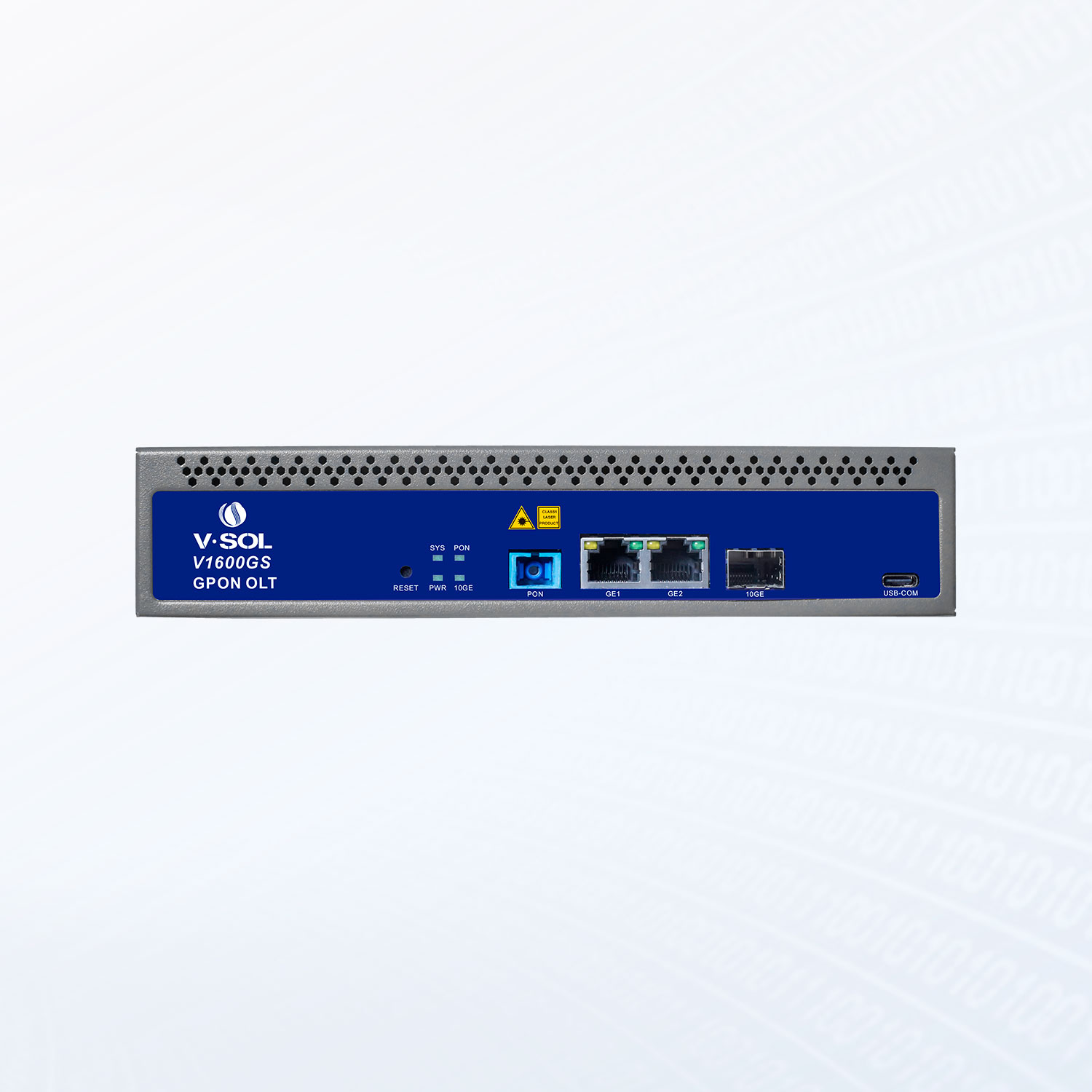

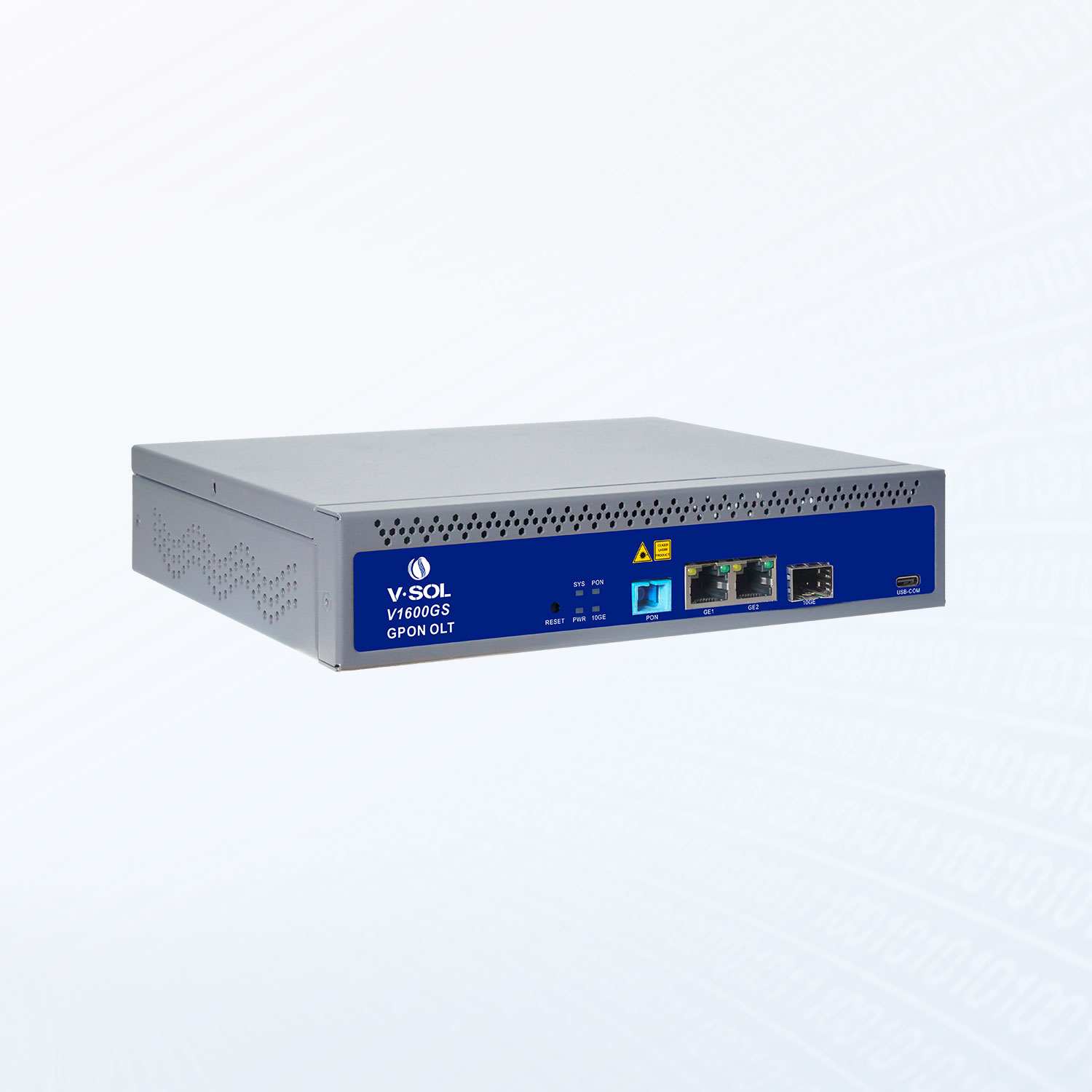

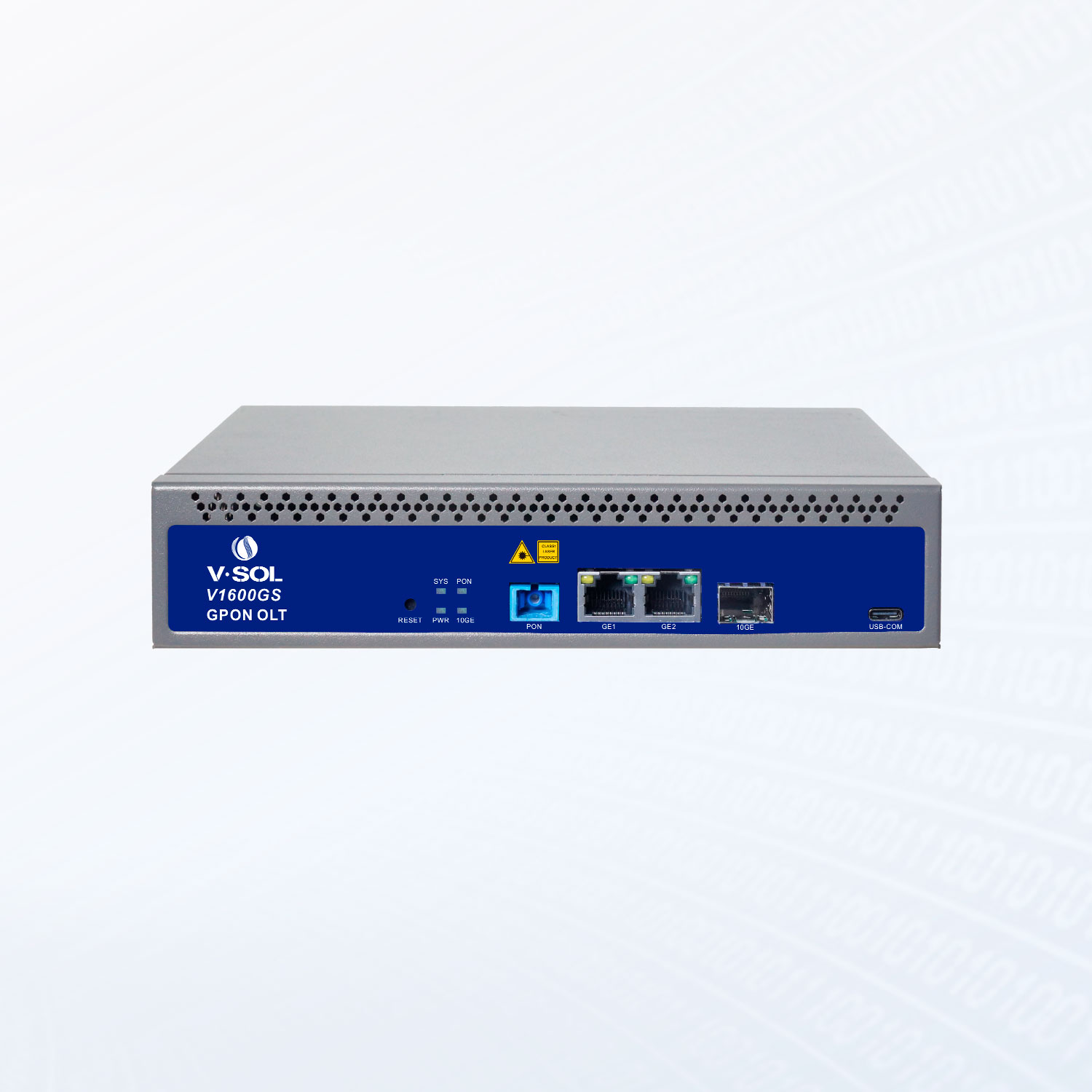

VSOL V1600GS‑F Single Port GPON OLT
- Single GPON port with upstream speed up to 1.244 Gbps and downstream up to 2.488 Gbps
- Supports transmission distance up to 20 km over single‑mode fiber
- Max optical split ratio up to 1:128
- 3 uplink ports: 2 × Gigabit RJ45 and 1 × SFP/SFP+ port
- 1U 19‑inch rack mount chassis design
- Backplane bandwidth approx 16 Gbps and forwarding rate approx 23.8 Mpps
- Management interfaces include WEB, Telnet, CLI and SNMP
- 1 × USB‑COM (Type‑C) management port
- Supports VLAN, QoS and other GPON networking features
- Flexible power supply options: AC 100–240 V and DC 12 V/2 A
- Built‑in lightning protection: 4 kV for power and 1 kV for device interfaces

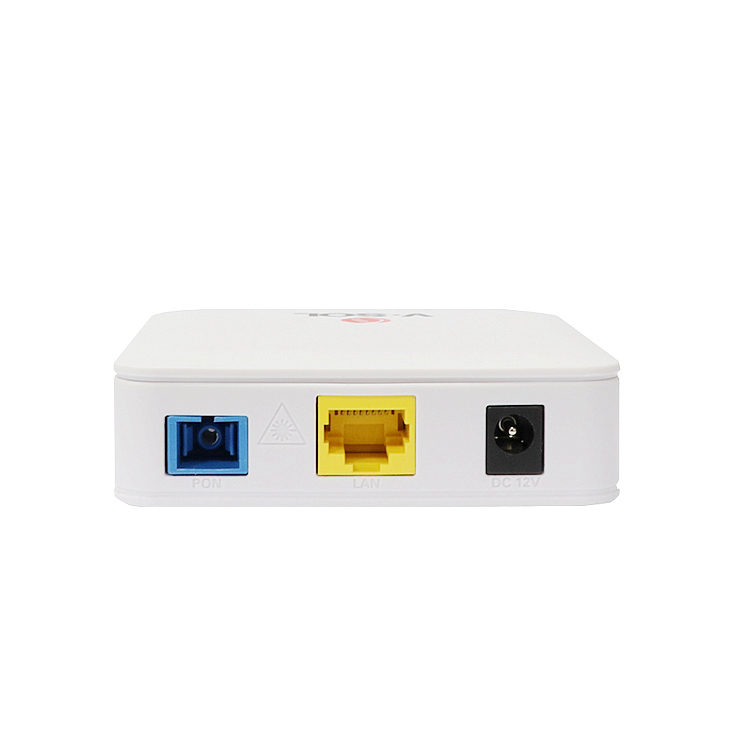

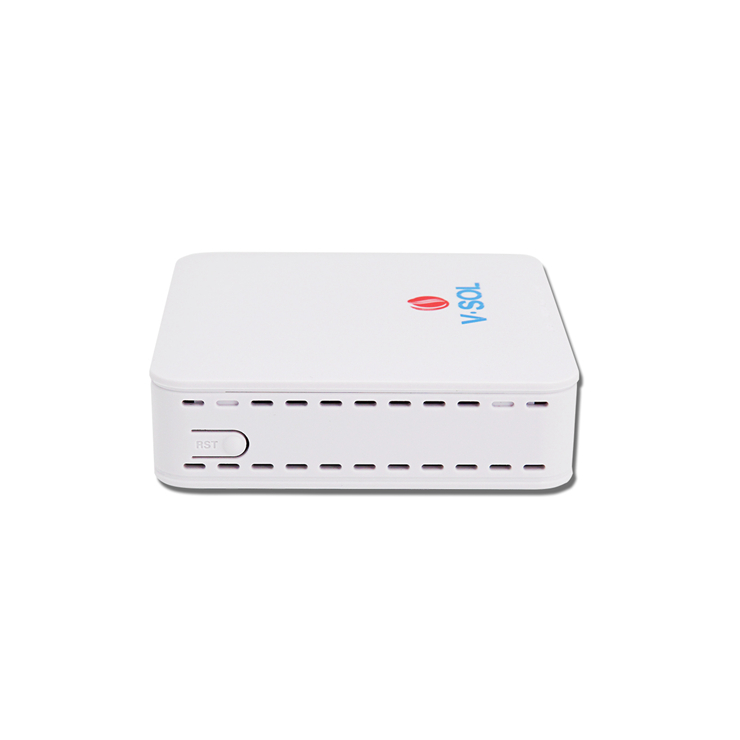

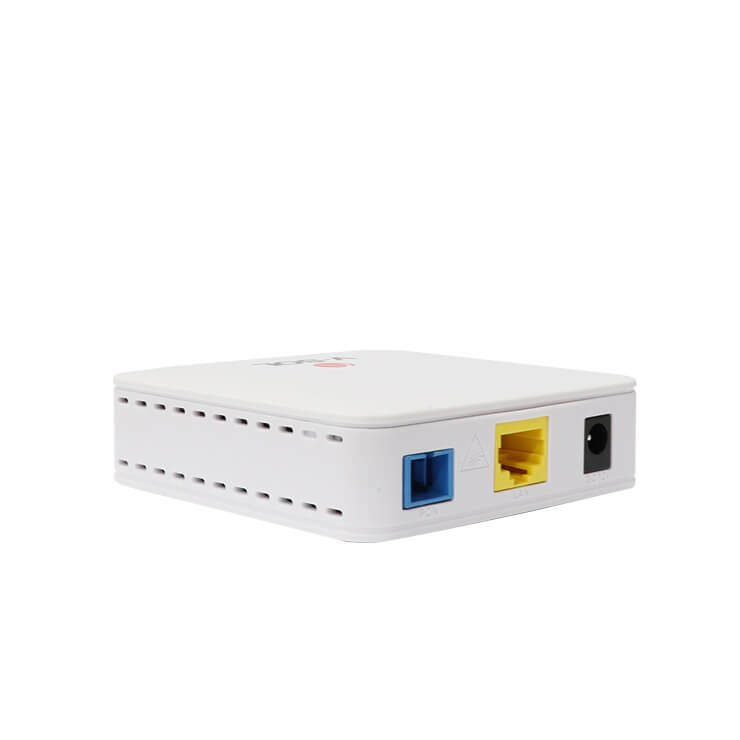

VSOL V2801LD XPON ONU
- 1 XPON optical port supporting dual mode (GPON & EPON)
- Up to 1.244 Gbps upstream and 2.488 Gbps downstream data rate
- Single Gigabit Ethernet LAN port for user connection
- Supports transmission distance up to 20 km over single‑mode fiber
- Compact design ideal for FTTH / FTTx broadband access
- Supports bridge mode and router mode operation
- Layer‑2 functions including VLAN, IGMP snooping and QoS
- Supports auto‑configuration via OMCI
- Standard external DC 12 V power supply
- LED indicators for power, PON and LAN status

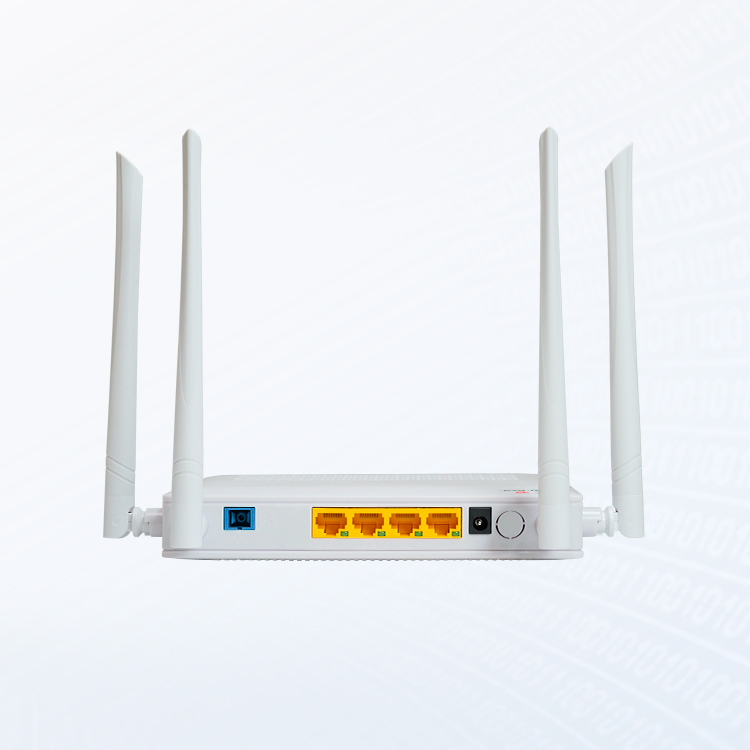

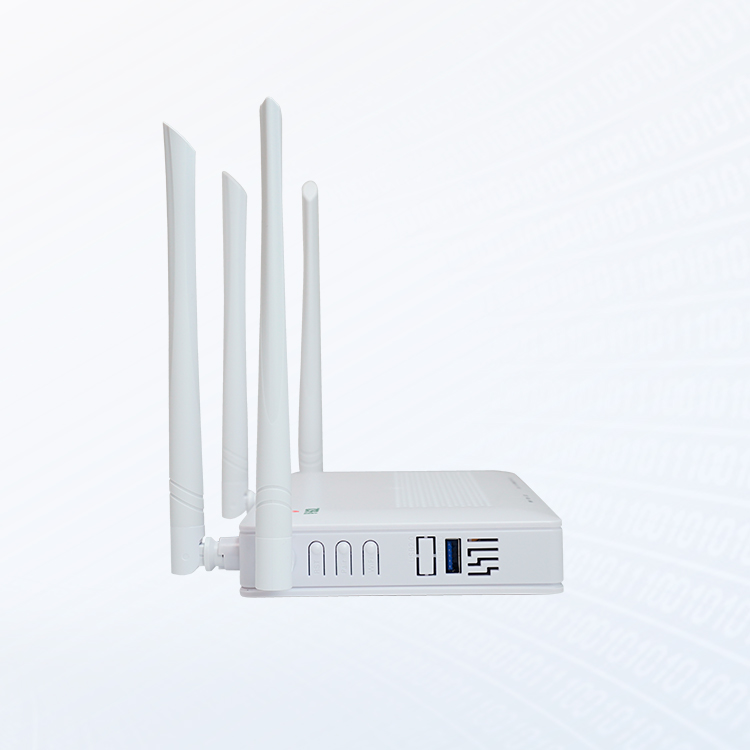

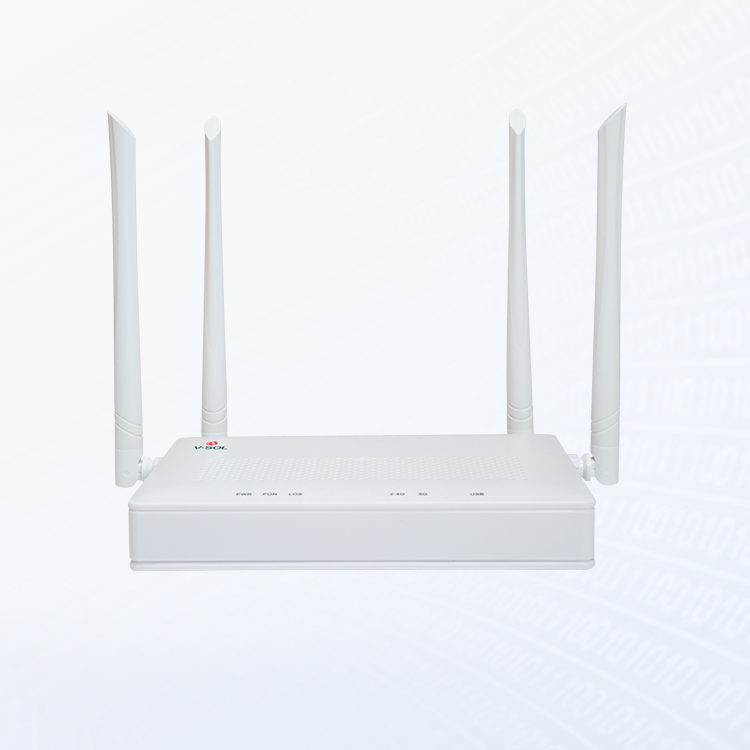

VSOL V2804AC XPON ONU / ONT
- 1 XPON optical port supporting dual mode (EPON PX20+ and GPON Class B+)
- Up to 2.488 Gbps download and 1.244 Gbps upload speeds
- 4 × Gigabit Ethernet LAN ports (auto‑negotiation)
- Built‑in Wi‑Fi 5 (IEEE802.11b/g/n/ac) with dual‑band 2.4 GHz & 5 GHz wireless
- 1 × USB 3.0 port for shared storage or devices
- Transmission distance up to 20 km over single‑mode fiber
- Supports OMCI, OAM, Telnet and WEB management
- LED indicators for Power, PON, LAN, Wi‑Fi and USB status
- 12 V DC external power adapter
- Compact design suitable for home and small office FTTH deployment

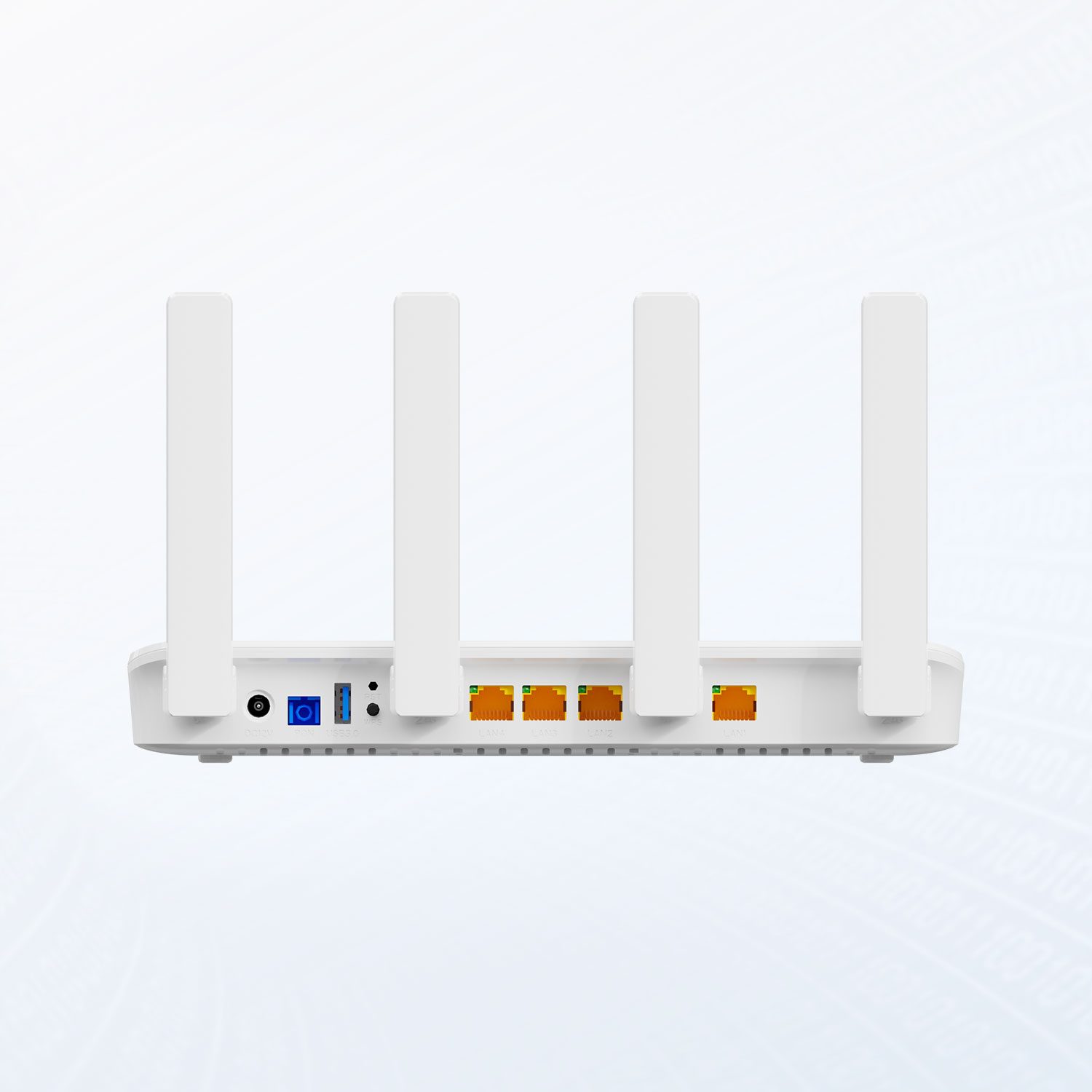

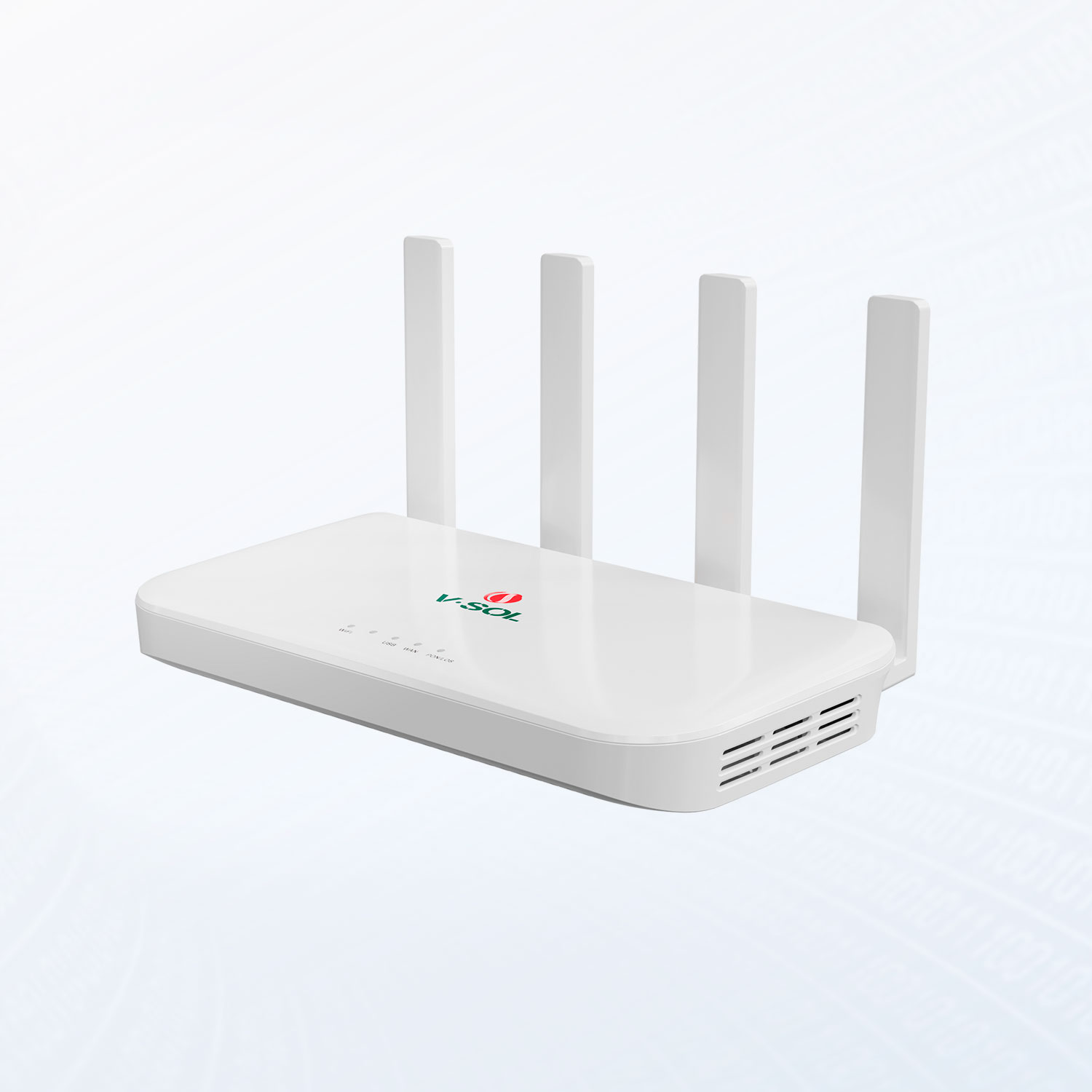

VSOL V2804‑AX15 XPON ONU / ONT
- 1 XPON optical port supporting both EPON PX20+ and GPON Class B+ modes
- Up to 2.488 Gbps downstream and 1.244 Gbps upstream data rates
- 4 × Gigabit Ethernet LAN ports for wired client devices
- Built‑in Wi‑Fi 6 (802.11ax) dual‑band wireless with up to AX1500 speeds
- 1 × USB 3.0 port for shared storage or devices
- Transmission distance up to 20 km over single‑mode fiber
- Supports remote OLT management via OMCI, OAM, TR‑069 and web interface
- LED indicators for Power, PON, LAN, Wi‑Fi and USB status
- Power supply via external 12 V DC adapter
- Compact design suitable for home and small business FTTH deployment

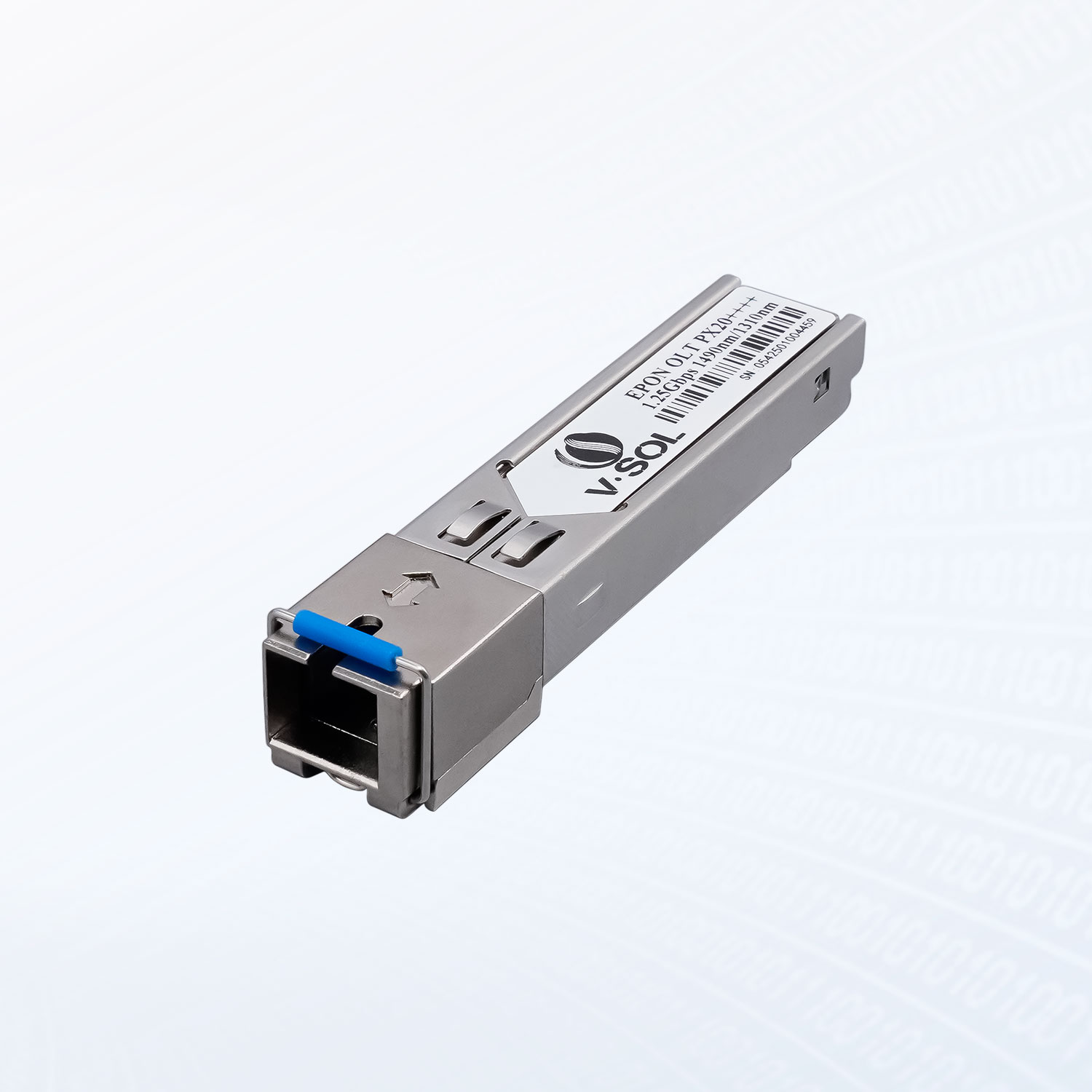

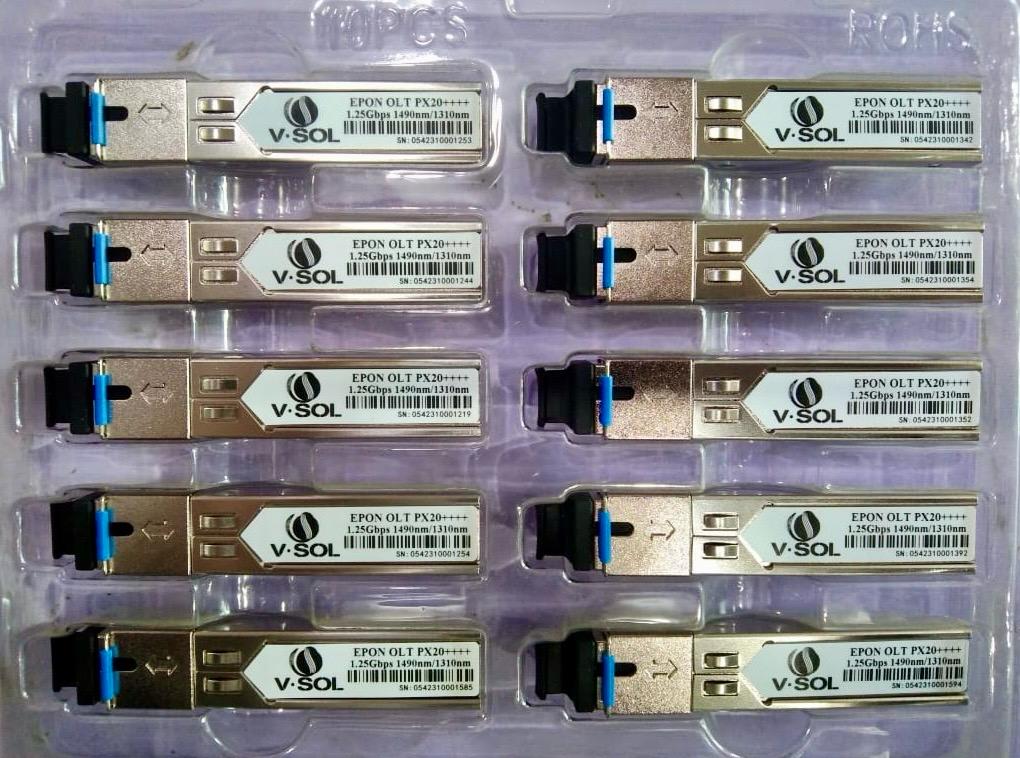

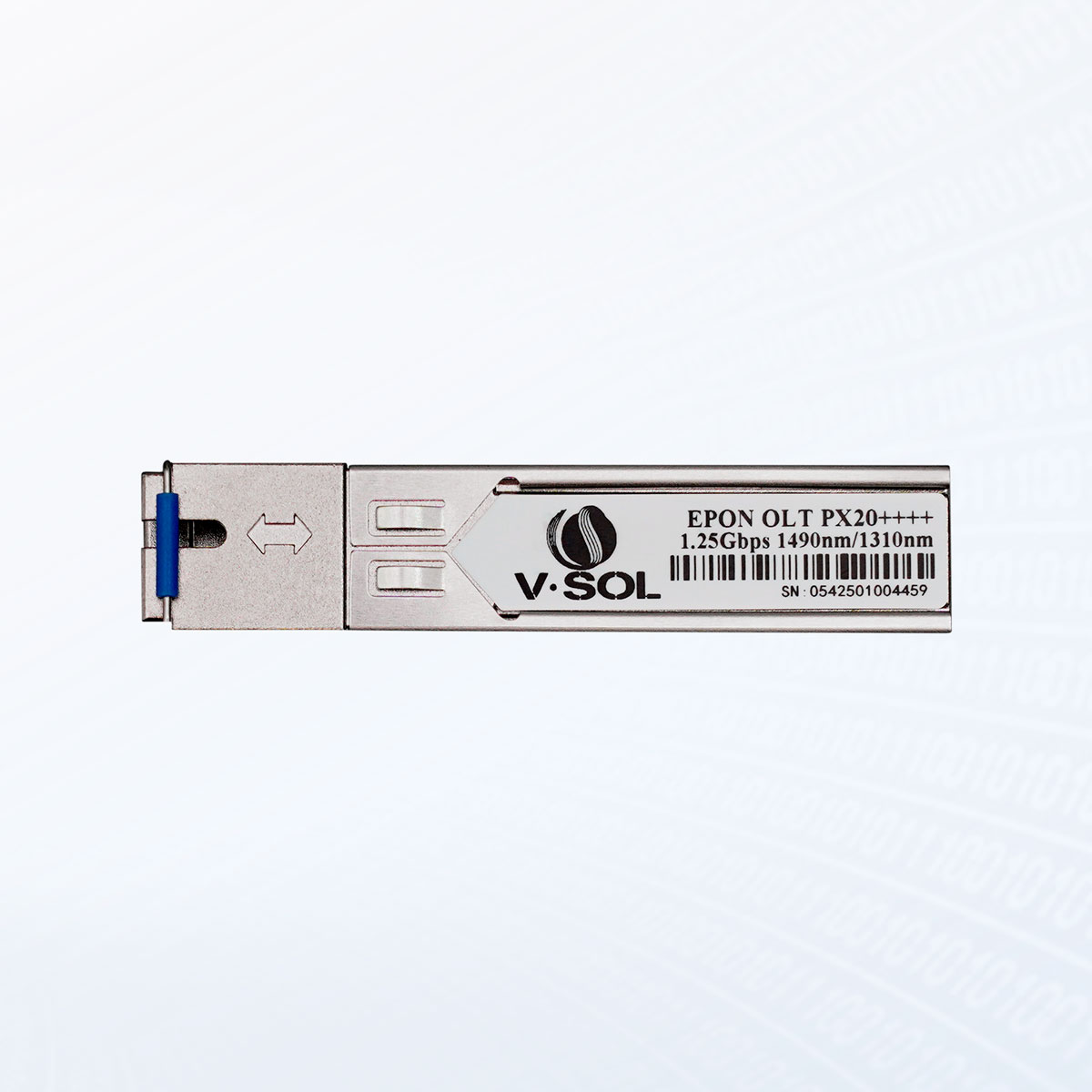

VSOL EPON OLT SFP PX20++++ Optical Module (9 dB)
- EPON OLT optical SFP transceiver module for high‑speed fiber access
- Data rate: 1.25 Gbps downstream and upstream
- Optical transmitter power: +9 dBm to +13 dBm
- Receiver sensitivity: ≤ ‑33 dBm
- PX20++++ optical class for long‑distance transmission
- Single‑mode fiber interface with SC connector
- Supports up to 20 km fiber reach
- Compatible with EPON OLT systems and other standard EPON hardware
GPON OLT SFP C++++ Optical Module
- GPON OLT optical SFP transceiver module for fiber access networks
- Supports GPON downstream up to 2.488 Gbps and upstream up to 1.244 Gbps
- Optical power class C++++ with high transmitter output power
- 1490 nm continuous‑mode transmitter and 1310 nm burst‑mode receiver
- Single‑mode fiber with SC/UPC connector interface
- Hot‑swappable SFP form factor for easy installation
- Extended transmission distance for long‑reach applications
- Digital diagnostic monitoring (DDM) supported
- Complies with ITU‑T G.984 GPON standards
XGS‑PON / GPON Combo OLT SFP+ Optical Module
- Combo optical transceiver module for OLT supporting both XGS‑PON and GPON standards
- Dual‑mode operation: XGS‑PON (10 Gbps) and GPON (2.488 Gbps)
- XGS‑PON downstream/upstream data rate up to 9.953 Gbps
- GPON downstream data rate up to 2.488 Gbps and upstream up to 1.244 Gbps
- Wavelengths: 1577 nm for XGS‑PON transmitter, 1270 nm for XGS‑PON receiver
- 1490 nm for GPON transmitter and 1310 nm for GPON receiver
- Single‑mode fiber interface with SC/UPC optical connector
- Extended transmission distance up to 20 km over single‑mode fiber
- Supports digital diagnostic monitoring (DDM) / DOM features
10G EPON OLT SFP+ PR40 Optical Module
- 10G EPON optical transceiver module designed for Optical Line Terminal (OLT)
- Supports EPON standard with 10 Gbps symmetrical upstream and downstream data rates
- PR40 optical class with extended transmission range up to 40 km
- Hot‑pluggable SFP+ form factor for easy installation
- Single‑mode fiber interface with SC/UPC connector
- High performance suitable for long‑distance FTTx, FTTH and metro fiber networks
- Compliant with IEEE 802.3av 10G‑EPON specifications
- Low power consumption and reliable optical performance
VSOL 1XPON + 1GE(SFP) SFP ONT Module
- Compact SFP‑form ONT module with 1 XPON uplink port and 1 GE SFP LAN interface
- Dual mode support for EPON PX20+ and GPON Class B+ fiber networks
- Optical PON interface with SC/UPC connector for direct fiber connection
- Transmission distance up to 20 km on single‑mode fiber
- EPON/GPON compliance for seamless compatibility with mainstream OLT equipment
- Receives optical signal with sensitivity down to approx. –28 dBm
- Transmitting optical power from approx. 0 to +4 dBm
- Meets IEEE 802.3ah and ITU‑T G.984.x standards
- Layer‑2 bridging support including 802.1D bridging and 802.1p CoS
- IPv4 support with PPPoE packet forwarding capability
